What we know about the measurement:

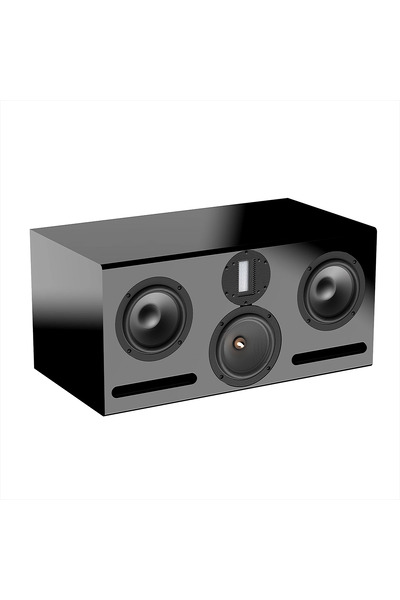

Ascend Acoustics ELX Ribbon Horizon is a passive center speaker that cost around 2800USD .

  • Quality of the measurement data is high .
  • Origin of the data is Ascend Acoustics.
  • Format of the data is a set of 36 horizontal and 36 vertical measurements .
  • Sensitivity: 87.6dB (avg. 100Hz-1kHz for 2.83V estimated at 1m)
  • -3dB (resp. -6db) point v.s. reference is at 51.3Hz (resp. 36.6Hz).
  • Reference level is normalised to -0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 1.9dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-60.0°, 60.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 6.24 and would be 7.9 with a perfect subwoofer.
      • Details: NBD: ON 0.378, LW 0.322, SP 0.388, PIR 0.319; SM: SP0.952, PIR0.913; LFQ 1.364, LFX 35Hz
    • Tonality (Preference) Score is 6.99 with an EQ and would be 8.4 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.322, LW 0.24, SP 0.301, PIR 0.227; SM: SP0.965, PIR0.949; LFQ 1.192, LFX 30Hz
  • Vendor specifications:
    • Sensitivity 88.0 dB
    • Impedance 8 Ohm
    • Size
      • Width 584mm
      • Height 279mm
      • Depth 317 mm)
    • Weight 24 kg
