What we know about the measurement:
- Quality of the measurement data is
high.
-

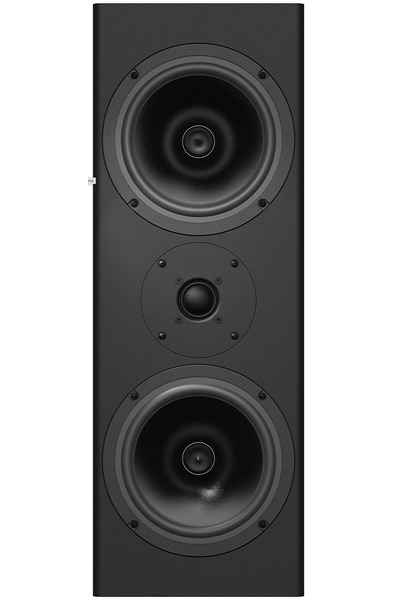

Origin of the data is Ascend Acoustics.
-
Format of the data is
a set of 36 horizontal and 36 vertical measurements
.
-
Sensitivity: 90.6dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
-
-3dB (resp. -6db) point v.s. reference is at 77.6Hz (resp. 64.5Hz).
-
Reference level is normalised to -0.2dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 2.2dB over the same frequency range.
- Directivity
-
Horizontal directivity
is (-50.0°, 50.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
-
Vertical directivity
is (-20.0°, 20.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Tonality (Preference) Score is 5.52
and would be 8.18 with a
perfect subwoofer.
- Details:
NBD: ON 0.326,
LW 0.26, SP
0.335, PIR
0.267; SM:
SP0.906,
PIR0.909; LFQ
0.981, LFX 60Hz
- Tonality (Preference) Score is 6.32
with an EQ and would be 8.45 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.279,
LW 0.212, SP
0.314, PIR
0.229; SM:
SP0.909,
PIR0.93; LFQ 0.986, LFX 45Hz
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -4.8dB.
|
| Type |
Freq |
Q |
Gain |
| LS |
77.0 |
0.35 |
2.98 |
| PK |
77.0 |
0.4 |
2.98 |
| PK |
106.0 |
1.77 |
-2.72 |
| PK |
143.0 |
1.41 |
-2.2 |
| PK |
447.0 |
0.55 |
-0.55 |
| PK |
511.0 |
2.48 |
1.63 |
| PK |
739.0 |
1.94 |
-0.73 |
| PK |
1594.0 |
0.55 |
0.82 |
| PK |
9691.0 |
0.63 |
0.41 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -0.7dB.
|
| Type |
Freq |
Q |
Gain |
| PK |
25.0 |
2.14 |
0.5 |
| PK |
40.0 |
2.14 |
0.5 |
| PK |
63.0 |
2.14 |
0.5 |
| PK |
100.0 |
2.14 |
0.0 |
| PK |
160.0 |
2.14 |
-0.25 |
| PK |
250.0 |
2.14 |
0.0 |
| PK |
400.0 |
2.14 |
0.25 |
| PK |
630.0 |
2.14 |
0.25 |
| PK |
1000.0 |
2.14 |
0.25 |
| PK |
1600.0 |
2.14 |
0.25 |
| PK |
2500.0 |
2.14 |
0.25 |
| PK |
4000.0 |
2.14 |
0.0 |
| PK |
6300.0 |
2.14 |
0.0 |
| PK |
10000.0 |
2.14 |
0.25 |
| PK |
16000.0 |
2.14 |
0.5 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -0.8dB.
|
| Type |
Freq |
Q |
Gain |
| PK |
20.0 |
4.32 |
0.0 |
| PK |
25.0 |
4.32 |
0.5 |
| PK |
31.0 |
4.32 |
0.5 |
| PK |
40.0 |
4.32 |
0.5 |
| PK |
50.0 |
4.32 |
0.5 |
| PK |
63.0 |
4.32 |
0.5 |
| PK |
80.0 |
4.32 |
0.25 |
| PK |
100.0 |
4.32 |
0.0 |
| PK |
125.0 |
4.32 |
-0.25 |
| PK |
160.0 |
4.32 |
-0.25 |
| PK |
200.0 |
4.32 |
0.0 |
| PK |
250.0 |
4.32 |
0.0 |
| PK |
315.0 |
4.32 |
0.0 |
| PK |
400.0 |
4.32 |
0.25 |
| PK |
500.0 |
4.32 |
0.25 |
| PK |
630.0 |
4.32 |
0.25 |
| PK |
800.0 |
4.32 |
0.25 |
| PK |
1000.0 |
4.32 |
0.25 |
| PK |
1250.0 |
4.32 |
0.25 |
| PK |
1600.0 |
4.32 |
0.25 |
| PK |
2000.0 |
4.32 |
0.25 |
| PK |
2500.0 |
4.32 |
0.25 |
| PK |
3150.0 |
4.32 |
0.0 |
| PK |
4000.0 |
4.32 |
0.0 |
| PK |
5000.0 |
4.32 |
0.0 |
| PK |
6300.0 |
4.32 |
0.0 |
| PK |
8000.0 |
4.32 |
0.25 |
| PK |
10000.0 |
4.32 |
0.25 |
| PK |
12000.0 |
4.32 |
0.25 |
| PK |
16000.0 |
4.32 |
0.5 |
| PK |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
