What we know about the measurement:

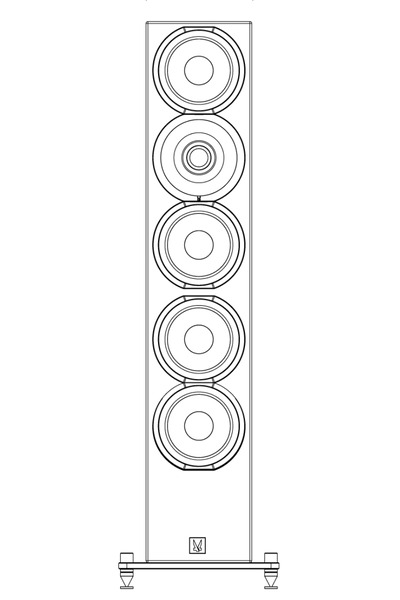

Arendal Sound 1961 Tower is a passive floorstanders that cost around 1700 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 86.9dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 63.0Hz (resp. 52.7Hz).
  • Reference level is normalised to -0.2dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.4dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-40.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 5.04 and would be 7.45 with a perfect subwoofer.
      • Details: NBD: ON 0.524, LW 0.462, SP 0.392, PIR 0.374; SM: SP0.973, PIR0.947; LFQ 1.378, LFX 52Hz
    • Tonality (Preference) Score is 5.94 with an EQ and would be 7.82 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.436, LW 0.37, SP 0.335, PIR 0.289; SM: SP0.957, PIR0.9; LFQ 1.23, LFX 39Hz
  • Link to original Review: eac review. Links to other reviews: yt review .
Arendal Sound 1961 Tower
AutomaticEQ (IIR)
Set preamp gain to: -5.4dB.
Type Freq Q Gain
5 63.0 0.26 2.88
3 63.0 0.57 1.84
3 63.0 0.41 2.72
3 87.0 1.56 -2.97
3 125.0 0.78 -2.91
3 194.0 2.29 0.67
3 1948.0 2.98 1.52
3 2909.0 2.92 1.8
3 12246.0 1.28 2.45
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Arendal Sound 1961 Tower filters_auto_eq

AutomaticEQ

Arendal Sound 1961 Tower filters_eq_full

Target v.s. EQ

Arendal Sound 1961 Tower
Graphic EQ 15 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 25.0 2.14 0.5
3 40.0 2.14 0.5
3 63.0 2.14 0.5
3 100.0 2.14 -0.25
3 160.0 2.14 0.0
3 250.0 2.14 0.0
3 400.0 2.14 0.0
3 630.0 2.14 0.0
3 1000.0 2.14 0.25
3 1600.0 2.14 0.25
3 2500.0 2.14 0.25
3 4000.0 2.14 0.25
3 6300.0 2.14 0.5
3 10000.0 2.14 0.25
3 16000.0 2.14 0.5
Download

These EQ is designed for a 15 bands graphical EQ.

Arendal Sound 1961 Tower
Graphic EQ 31 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.5
3 63.0 4.32 0.5
3 80.0 4.32 0.0
3 100.0 4.32 -0.25
3 125.0 4.32 -0.25
3 160.0 4.32 0.0
3 200.0 4.32 0.0
3 250.0 4.32 0.0
3 315.0 4.32 0.0
3 400.0 4.32 0.0
3 500.0 4.32 0.0
3 630.0 4.32 0.0
3 800.0 4.32 0.25
3 1000.0 4.32 0.25
3 1250.0 4.32 0.0
3 1600.0 4.32 0.25
3 2000.0 4.32 0.5
3 2500.0 4.32 0.25
3 3150.0 4.32 0.25
3 4000.0 4.32 0.25
3 5000.0 4.32 0.25
3 6300.0 4.32 0.5
3 8000.0 4.32 0.25
3 10000.0 4.32 0.25
3 12000.0 4.32 0.5
3 16000.0 4.32 0.5
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

Arendal Sound 1961 Tower: comparison between EQs
Arendal Sound 1961 Tower

Comparison betweens various EQs

Arendal Sound 1961 Tower

Improvements made by EQ
