What we know about the measurement:

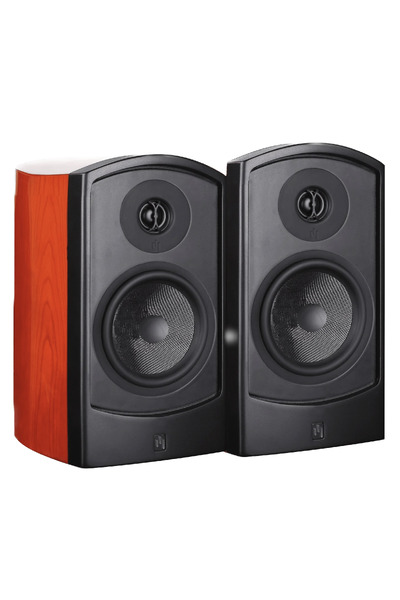

Aperion Audio Verus III Concert V8B is a passive bookshelves that cost around 750 USD each.

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 84.0dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 55.7Hz (resp. 48.3Hz).
  • Reference level is normalised to 0.3dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.3dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-60.0°, 60.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 3.19 and would be 5.32 with a perfect subwoofer.
      • Details: NBD: ON 0.538, LW 0.515, SP 0.629, PIR 0.562; SM: SP0.624, PIR0.287; LFQ 0.942, LFX 45Hz
    • Tonality (Preference) Score is 5.72 with an EQ and would be 7.46 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.457, LW 0.379, SP 0.507, PIR 0.41; SM: SP0.936, PIR0.925; LFQ 0.942, LFX 36Hz
  • Link to original Review: eac review. Links to other reviews: yt review .
  • Vendor specifications:
    • Sensitivity 88 dB
    • Impedance 6 Ohm
    • Size
      • Width 269mm
      • Height 433mm
      • Depth 330 mm)
    • Weight 12.7 kg
Aperion Audio Verus III Concert V8B
AutomaticEQ (IIR)
Set preamp gain to: -3.1dB.
Type Freq Q Gain
3 34.0 2.93 3.0
3 190.0 1.11 2.38
3 356.0 2.88 1.03
3 1288.0 1.49 -3.99
3 4051.0 1.17 -6.73
3 4495.0 0.25 2.99
3 9989.0 1.65 -4.66
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Aperion Audio Verus III Concert V8B filters_auto_eq

AutomaticEQ

Aperion Audio Verus III Concert V8B filters_eq_full

Target v.s. EQ

Aperion Audio Verus III Concert V8B
Graphic EQ 15 bands
Set preamp gain to: -0.5dB.
Type Freq Q Gain
3 25.0 2.14 0.25
3 40.0 2.14 0.25
3 63.0 2.14 0.0
3 100.0 2.14 0.0
3 160.0 2.14 0.25
3 250.0 2.14 0.25
3 400.0 2.14 0.25
3 630.0 2.14 -0.25
3 1000.0 2.14 -0.25
3 1600.0 2.14 -0.5
3 2500.0 2.14 0.0
3 4000.0 2.14 -0.75
3 6300.0 2.14 -0.25
3 10000.0 2.14 -0.5
3 16000.0 2.14 0.5
Download

These EQ is designed for a 15 bands graphical EQ.

Aperion Audio Verus III Concert V8B
Graphic EQ 31 bands
Set preamp gain to: -0.4dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.25
3 31.0 4.32 0.25
3 40.0 4.32 0.25
3 50.0 4.32 0.25
3 63.0 4.32 0.0
3 80.0 4.32 -0.25
3 100.0 4.32 0.0
3 125.0 4.32 0.0
3 160.0 4.32 0.25
3 200.0 4.32 0.25
3 250.0 4.32 0.25
3 315.0 4.32 0.25
3 400.0 4.32 0.0
3 500.0 4.32 0.0
3 630.0 4.32 -0.25
3 800.0 4.32 0.0
3 1000.0 4.32 -0.25
3 1250.0 4.32 -0.5
3 1600.0 4.32 -0.5
3 2000.0 4.32 -0.25
3 2500.0 4.32 0.0
3 3150.0 4.32 -0.5
3 4000.0 4.32 -0.75
3 5000.0 4.32 -0.75
3 6300.0 4.32 -0.25
3 8000.0 4.32 -0.5
3 10000.0 4.32 -0.5
3 12000.0 4.32 -0.25
3 16000.0 4.32 0.25
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

Aperion Audio Verus III Concert V8B: comparison between EQs
Aperion Audio Verus III Concert V8B

Comparison betweens various EQs

Aperion Audio Verus III Concert V8B

Improvements made by EQ
CEA2034
CEA2034 Normalized
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
CEA2034
CEA2034 Normalized
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
