What we know about the measurement:

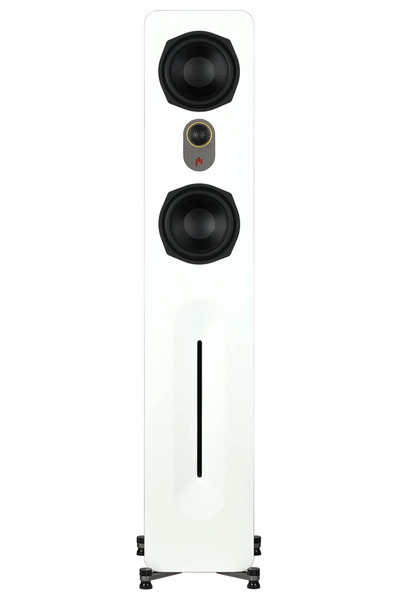

Aperion Audio Novus N5T is a passive floorstanders that cost around 1400 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is ASR.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 86.5dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 51.3Hz (resp. 36.6Hz).
  • Reference level is normalised to -0.3dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.4dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-60.0°, 60.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 5.17 and would be 6.91 with a perfect subwoofer.
      • Details: NBD: ON 0.476, LW 0.451, SP 0.477, PIR 0.408; SM: SP0.784, PIR0.705; LFQ 0.981, LFX 36Hz
    • Tonality (Preference) Score is 6.46 with an EQ and would be 7.95 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.41, LW 0.34, SP 0.384, PIR 0.291; SM: SP0.918, PIR0.934; LFQ 0.852, LFX 32Hz
  • Link to Original review.
Aperion Audio Novus N5T
AutomaticEQ (IIR)
Set preamp gain to: -3.0dB.
Type Freq Q Gain
3 30.0 1.77 3.0
3 299.0 2.95 2.27
3 332.0 2.9 -3.63
3 1887.0 2.97 3.0
3 2862.0 2.19 -2.08
3 6585.0 2.88 -0.96
3 12736.0 0.77 -1.37
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Aperion Audio Novus N5T filters_auto_eq

AutomaticEQ

Aperion Audio Novus N5T filters_eq_full

Target v.s. EQ

Aperion Audio Novus N5T
Graphic EQ 15 bands
Set preamp gain to: -0.6dB.
Type Freq Q Gain
3 25.0 2.14 0.5
3 40.0 2.14 0.5
3 63.0 2.14 0.25
3 100.0 2.14 -0.25
3 160.0 2.14 0.0
3 250.0 2.14 0.0
3 400.0 2.14 -0.25
3 630.0 2.14 0.25
3 1000.0 2.14 0.0
3 1600.0 2.14 0.5
3 2500.0 2.14 0.0
3 4000.0 2.14 0.0
3 6300.0 2.14 0.0
3 10000.0 2.14 0.0
3 16000.0 2.14 0.25
Download

These EQ is designed for a 15 bands graphical EQ.

Aperion Audio Novus N5T
Graphic EQ 31 bands
Set preamp gain to: -0.9dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.5
3 63.0 4.32 0.25
3 80.0 4.32 0.0
3 100.0 4.32 -0.25
3 125.0 4.32 -0.25
3 160.0 4.32 0.0
3 200.0 4.32 0.0
3 250.0 4.32 0.0
3 315.0 4.32 0.0
3 400.0 4.32 0.0
3 500.0 4.32 0.0
3 630.0 4.32 0.25
3 800.0 4.32 0.25
3 1000.0 4.32 0.0
3 1250.0 4.32 0.25
3 1600.0 4.32 0.5
3 2000.0 4.32 0.75
3 2500.0 4.32 0.0
3 3150.0 4.32 -0.25
3 4000.0 4.32 0.0
3 5000.0 4.32 0.0
3 6300.0 4.32 0.0
3 8000.0 4.32 0.25
3 10000.0 4.32 0.0
3 12000.0 4.32 0.0
3 16000.0 4.32 0.25
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

Aperion Audio Novus N5T: comparison between EQs
Aperion Audio Novus N5T

Comparison betweens various EQs

Aperion Audio Novus N5T

Improvements made by EQ
