What we know about the measurement:

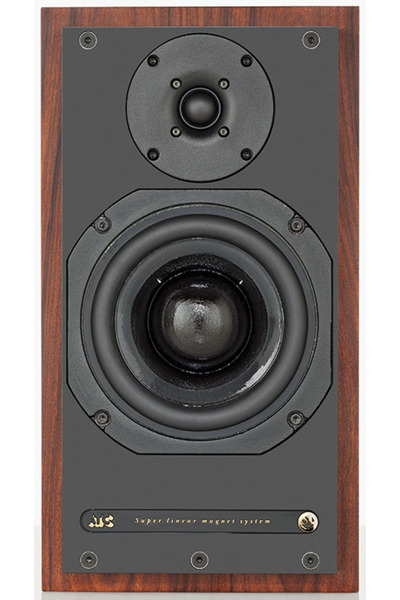

ATC SCM20SL MK2 is a passive bookshelves

  • Quality of the measurement data is low.
  • Origin of the data is Misc.
  • Format of the data is a set of 36 horizontal and 36 vertical measurements .
  • Sensitivity: 67.8dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 170.0Hz (resp. 100.0Hz).
  • Reference level is normalised to 0.9dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.2dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 2.05 and would be 6.03 with a perfect subwoofer.
      • Details: NBD: ON 0.4, LW 0.289, SP 0.333, PIR 0.294; SM: SP0.45, PIR0.1; LFQ 2.187, LFX 122Hz
  • Link to original Review: audiorekr review. .
  • Note: Data is valid above ~200Hz..
  • Vendor specifications:
    • Dispersion: 80° horizontal and 10° vertical.
    • Impedance 5.5 Ohm
    • SPL
      • peak: 108 dB
    • Size
      • Width 239mm
      • Height 440mm
      • Depth 336mm
    • Weight 18kg
CEA2034
CEA2034 Normalized
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
;
