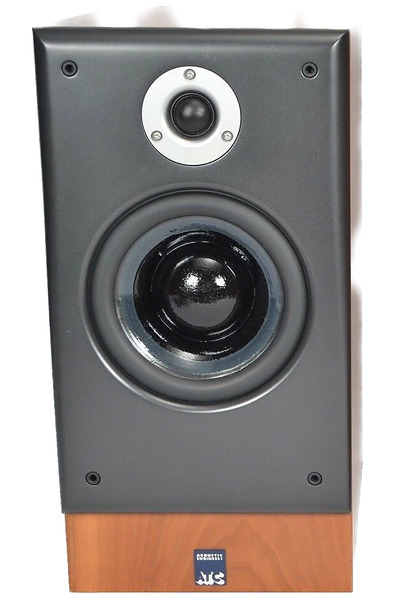

What we know about the measurement:
- Quality of the measurement data is
high.
-
Origin of the data is ASR.
-
Format of the data is
generated by a Klippel NFS
.
-
Sensitivity: 83.4dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
-
-3dB (resp. -6db) point v.s. reference is at 120.1Hz (resp. 55.7Hz).
-
Reference level is normalised to -0.1dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 2.6dB over the same frequency range.
- Directivity
-
Horizontal directivity
is (-70.0°, 70.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
-
Vertical directivity
is (-20.0°, 20.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Tonality (Preference) Score is 4.55
and would be 6.97 with a
perfect subwoofer.
- Details:
NBD: ON 0.386,
LW 0.347, SP
0.327, PIR
0.305; SM:
SP0.751,
PIR0.502; LFQ
1.078, LFX 52Hz
- Tonality (Preference) Score is 6.73
with an EQ and would be 8.54 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.293,
LW 0.237, SP
0.258, PIR
0.21; SM:
SP0.952,
PIR0.955; LFQ 0.942, LFX 38Hz
- Link to Original review.
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -5.2dB.
|
| Type |
Freq |
Q |
Gain |
| 5 |
120.0 |
1.04 |
2.74 |
| 3 |
207.0 |
1.87 |
0.47 |
| 3 |
646.0 |
2.98 |
-2.75 |
| 3 |
1032.0 |
1.39 |
-2.8 |
| 3 |
3438.0 |
2.57 |
-2.32 |
| 3 |
4966.0 |
2.89 |
-2.45 |
| 5 |
16000.0 |
1.29 |
2.43 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
flipflop@ASR (IIR)
|
|
Set preamp gain to: -1.9dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
325.0 |
10.0 |
-1.0 |
| 3 |
345.0 |
4.0 |
1.2 |
| 3 |
408.0 |
7.0 |
-1.4 |
| 3 |
482.0 |
30.0 |
1.6 |
| 3 |
541.0 |
8.0 |
-0.5 |
| 3 |
603.0 |
5.0 |
-1.9 |
| 3 |
675.0 |
5.0 |
-1.7 |
| 3 |
945.0 |
1.372 |
-3.3 |
| 3 |
985.0 |
10.0 |
-0.5 |
| 3 |
1131.0 |
10.0 |
0.7 |
| 3 |
1265.0 |
20.0 |
-0.6 |
| 3 |
1580.0 |
20.0 |
-0.8 |
| 3 |
1820.0 |
15.0 |
-0.5 |
| 3 |
2800.0 |
7.0 |
-0.4 |
| 3 |
3137.0 |
1.001 |
-1.5 |
| 3 |
4200.0 |
10.0 |
0.7 |
| 3 |
5020.0 |
5.0 |
-0.7 |
| 3 |
6180.0 |
7.0 |
1.0 |
| 3 |
7460.0 |
5.0 |
2.1 |
| 3 |
12250.0 |
5.0 |
1.5 |
|
Download
|
These EQ is designed by ASR member flipflop.
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -0.7dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
25.0 |
2.14 |
0.5 |
| 3 |
40.0 |
2.14 |
0.5 |
| 3 |
63.0 |
2.14 |
0.5 |
| 3 |
100.0 |
2.14 |
0.5 |
| 3 |
160.0 |
2.14 |
0.5 |
| 3 |
250.0 |
2.14 |
0.5 |
| 3 |
400.0 |
2.14 |
0.25 |
| 3 |
630.0 |
2.14 |
-0.25 |
| 3 |
1000.0 |
2.14 |
-0.25 |
| 3 |
1600.0 |
2.14 |
0.25 |
| 3 |
2500.0 |
2.14 |
0.25 |
| 3 |
4000.0 |
2.14 |
0.0 |
| 3 |
6300.0 |
2.14 |
0.25 |
| 3 |
10000.0 |
2.14 |
0.25 |
| 3 |
16000.0 |
2.14 |
0.5 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -1.2dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
20.0 |
4.32 |
0.0 |
| 3 |
25.0 |
4.32 |
0.75 |
| 3 |
31.0 |
4.32 |
0.75 |
| 3 |
40.0 |
4.32 |
0.75 |
| 3 |
50.0 |
4.32 |
0.75 |
| 3 |
63.0 |
4.32 |
0.75 |
| 3 |
80.0 |
4.32 |
0.75 |
| 3 |
100.0 |
4.32 |
0.75 |
| 3 |
125.0 |
4.32 |
0.75 |
| 3 |
160.0 |
4.32 |
0.75 |
| 3 |
200.0 |
4.32 |
0.75 |
| 3 |
250.0 |
4.32 |
0.5 |
| 3 |
315.0 |
4.32 |
0.5 |
| 3 |
400.0 |
4.32 |
0.25 |
| 3 |
500.0 |
4.32 |
0.25 |
| 3 |
630.0 |
4.32 |
-0.5 |
| 3 |
800.0 |
4.32 |
-0.25 |
| 3 |
1000.0 |
4.32 |
-0.25 |
| 3 |
1250.0 |
4.32 |
0.0 |
| 3 |
1600.0 |
4.32 |
0.0 |
| 3 |
2000.0 |
4.32 |
0.25 |
| 3 |
2500.0 |
4.32 |
0.25 |
| 3 |
3150.0 |
4.32 |
0.0 |
| 3 |
4000.0 |
4.32 |
0.25 |
| 3 |
5000.0 |
4.32 |
0.25 |
| 3 |
6300.0 |
4.32 |
0.75 |
| 3 |
8000.0 |
4.32 |
0.75 |
| 3 |
10000.0 |
4.32 |
0.5 |
| 3 |
12000.0 |
4.32 |
0.75 |
| 3 |
16000.0 |
4.32 |
1.0 |
| 3 |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
