- Quality of the measurement data is high.
- Origin of the data is ErinsAudioCorner.
- Format of the data is generated by a Klippel NFS .
-
Sensitivity:
- Company: 90 dB
- Measured: 88.2 dB (avg. 300Hz-3kHz for 2.83V measured at 1m).
- -3dB (resp. -6db) point v.s. reference is at 76.9Hz (resp. 43.9Hz).
- Reference level is normalised to 0.0dB computed over the frequency range [300.0Hz, 5000.0Hz].
- Frequency deviation is 2.5dB over the same frequency range.
- Tonality (Preference) Score
- Tonality (Preference) Score is 5.85
and would be 7.69 with a
perfect subwoofer.
- Details: NBD: ON 0.352, LW 0.317, SP 0.334, PIR 0.265; SM: SP0.811, PIR0.724; LFQ 1.286, LFX 38Hz
- Tonality (Preference) Score is 6.77
with an EQ and would be 8.35 with a
perfect subwoofer and the same EQ.
- Details: NBD: ON 0.304, LW 0.279, SP 0.323, PIR 0.237; SM: SP0.896, PIR0.92; LFQ 1.248, LFX 33Hz
- Tonality (Preference) Score is 5.85
and would be 7.69 with a
perfect subwoofer.
- Link to original Review: eac review. Links to other reviews: yt review .

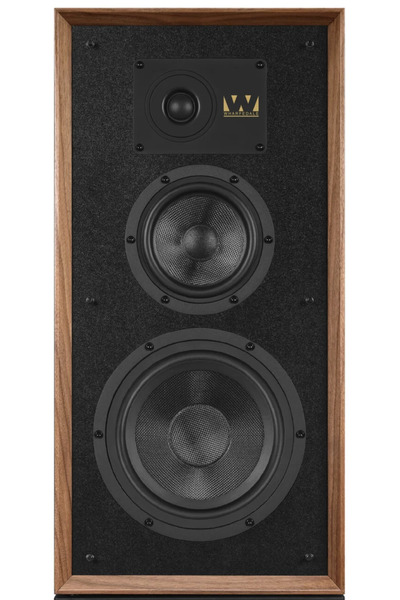

Wharfedale Super Linton is a passive bookshelves that cost around 3000 USD for a pair.
Vendor specifications
- Impedance 3.9 Ohm
- SPL
- peak: 110 dB
- Size
- Width 300mm
- Height 605mm
- Depth 350mm
- Weight 19.8kg
Directivity (-6dB)
| AutomaticEQ (IIR) | |||
| Set preamp gain to: -2.8dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 42.0 | 0.77 | 2.82 |
| PK | 643.0 | 1.71 | -2.47 |
| PK | 739.0 | 2.69 | 1.4 |
| PK | 1244.0 | 0.51 | 1.92 |
| PK | 1288.0 | 2.55 | -2.17 |
| PK | 6361.0 | 0.5 | -1.99 |
| Download | |||
