What we know about the measurement:

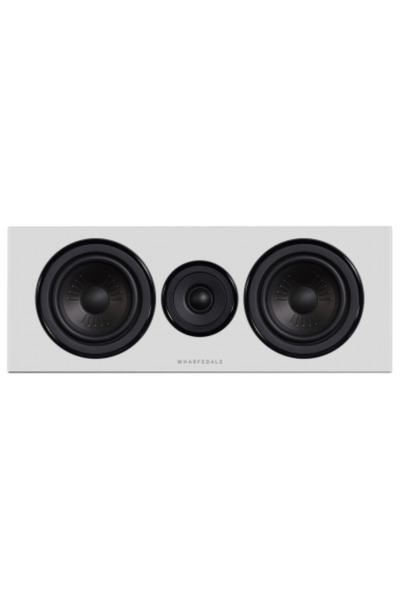

Wharfedale Diamond 12 Center is a passive center

  • Quality of the measurement data is low.
  • Origin of the data is Misc.
  • Format of the data is a set of 36 horizontal and 36 vertical measurements .
  • -3dB (resp. -6db) point v.s. reference is at 185.0Hz (resp. 112.0Hz).
  • Reference level is normalised to -0.2dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.5dB over the same frequency range.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 1.87 and would be 5.86 with a perfect subwoofer.
      • Details: NBD: ON 0.377, LW 0.346, SP 0.364, PIR 0.306; SM: SP0.281, PIR0.013; LFQ 2.026, LFX 122Hz
CEA2034
CEA2034 Normalized
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
;
