What we know about the measurement:

Triangle Esprit Titus EZ is a passive bookshelves that cost around 449 USD for a pair.

  • Quality of the measurement data is low.
  • Origin of the data is Misc.
  • Format of the data is a set of 36 horizontal and 36 vertical measurements .
  • -3dB (resp. -6db) point v.s. reference is at 73.4Hz (resp. 63.5Hz).
  • Reference level is normalised to -0.3dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.9dB over the same frequency range.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.54 and would be 7.28 with a perfect subwoofer.
      • Details: NBD: ON 0.399, LW 0.413, SP 0.43, PIR 0.416; SM: SP0.918, PIR0.791; LFQ 0.813, LFX 62Hz
    • Tonality (Preference) Score is 5.59 with an EQ and would be 8.14 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.296, LW 0.304, SP 0.358, PIR 0.323; SM: SP0.966, PIR0.931; LFQ 0.813, LFX 56Hz
  • Link to original Review: asr review. .
  • Vendor specifications:
    • Sensitivity 90 dB
    • Impedance 4 Ohm
    • Size
      • Width 267mm
      • Height 305mm
      • Depth 168mm
    • Weight 5.9kg

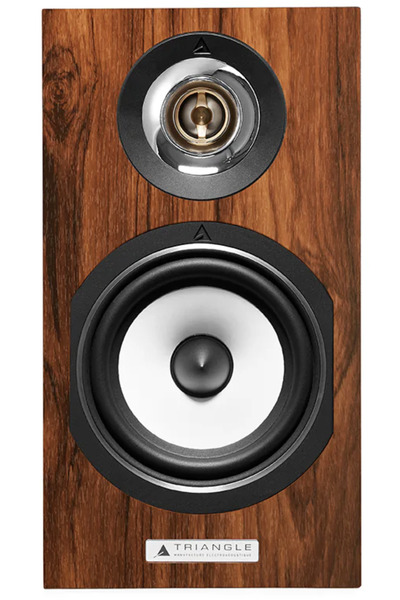

Triangle Esprit Titus EZ
AutomaticEQ (IIR)
Set preamp gain to: -3.0dB.
Type Freq Q Gain
PK 56.0 1.06 3.0
PK 149.0 2.35 -0.77
PK 765.0 2.97 1.13
PK 910.0 2.91 -4.58
PK 1202.0 2.96 3.0
PK 1333.0 3.0 -0.89
PK 15685.0 0.5 -2.2
Download
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
Improvement made by adding the above EQ
EQ
AutoEQ
Target v.s. EQ
Target v.s. EQ
Histogram of errors
On Axis (fullrange)
Listening Window (fullrange)
Predicted In-Room Response (fullrange)
;
