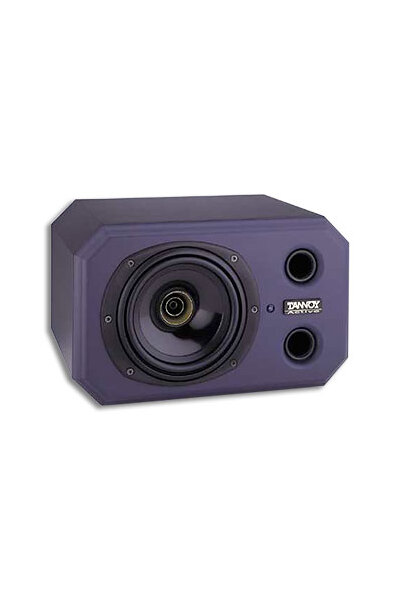

What we know about the measurement:
- Quality of the measurement data is
high.
-
Origin of the data is ASR.
-
Format of the data is
generated by a Klippel NFS
.
-
Sensitivity: 86.8dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
-
-3dB (resp. -6db) point v.s. reference is at 112.8Hz (resp. 74.0Hz).
-
Reference level is normalised to 0.1dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 8.1dB over the same frequency range.
- Directivity
-
Horizontal directivity
is (-50.0°, 40.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
-
Vertical directivity
is (-40.0°, 40.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Tonality (Preference) Score is 1.56
and would be 4.56 with a
perfect subwoofer.
- Details:
NBD: ON 0.873,
LW 0.806, SP
0.729, PIR
0.721; SM:
SP0.738,
PIR0.522; LFQ
1.038, LFX 71Hz
- Tonality (Preference) Score is 5.34
with an EQ and would be 7.48 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.458,
LW 0.396, SP
0.403, PIR
0.358; SM:
SP0.931,
PIR0.868; LFQ 0.787, LFX 45Hz
- Link to Original review.
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -7.6dB.
|
| Type |
Freq |
Q |
Gain |
| LS |
112.0 |
0.56 |
2.99 |
| PK |
112.0 |
2.3 |
0.86 |
| PK |
112.0 |
0.56 |
0.62 |
| PK |
790.0 |
2.79 |
-2.98 |
| PK |
1067.0 |
1.78 |
-2.99 |
| PK |
1541.0 |
2.92 |
2.92 |
| PK |
1541.0 |
2.99 |
2.92 |
| PK |
1541.0 |
3.0 |
2.93 |
| PK |
14965.0 |
1.21 |
2.96 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
flipflop@ASR (IIR)
|
|
Set preamp gain to: -7.6dB.
|
| Type |
Freq |
Q |
Gain |
| PK |
515.0 |
4.5 |
-0.5 |
| PK |
655.0 |
4.0 |
1.0 |
| PK |
722.0 |
9.0 |
-1.1 |
| PK |
800.0 |
2.077 |
-4.3 |
| PK |
825.0 |
13.0 |
0.6 |
| PK |
922.0 |
13.0 |
-0.7 |
| PK |
999.0 |
20.0 |
0.8 |
| PK |
1115.0 |
5.0 |
-2.4 |
| PK |
1443.0 |
5.0 |
7.1 |
| PK |
1623.0 |
5.0 |
2.7 |
| PK |
2039.0 |
5.0 |
-0.7 |
| PK |
2836.0 |
1.929 |
2.4 |
| PK |
3367.0 |
5.0 |
-1.5 |
| PK |
4340.0 |
7.5 |
0.5 |
| PK |
4840.0 |
10.0 |
-1.3 |
| PK |
5660.0 |
12.0 |
0.7 |
| PK |
6603.0 |
5.0 |
-1.0 |
| PK |
8580.0 |
10.0 |
-1.1 |
| PK |
9780.0 |
7.0 |
0.9 |
| PK |
11620.0 |
10.0 |
2.6 |
|
Download
|
These EQ is designed by ASR member flipflop.
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -1.3dB.
|
| Type |
Freq |
Q |
Gain |
| PK |
25.0 |
2.14 |
0.5 |
| PK |
40.0 |
2.14 |
0.5 |
| PK |
63.0 |
2.14 |
0.5 |
| PK |
100.0 |
2.14 |
0.5 |
| PK |
160.0 |
2.14 |
0.25 |
| PK |
250.0 |
2.14 |
0.0 |
| PK |
400.0 |
2.14 |
0.0 |
| PK |
630.0 |
2.14 |
-0.25 |
| PK |
1000.0 |
2.14 |
-0.5 |
| PK |
1600.0 |
2.14 |
1.0 |
| PK |
2500.0 |
2.14 |
0.25 |
| PK |
4000.0 |
2.14 |
0.25 |
| PK |
6300.0 |
2.14 |
0.0 |
| PK |
10000.0 |
2.14 |
0.25 |
| PK |
16000.0 |
2.14 |
1.25 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -1.3dB.
|
| Type |
Freq |
Q |
Gain |
| PK |
20.0 |
4.32 |
0.0 |
| PK |
25.0 |
4.32 |
0.5 |
| PK |
31.0 |
4.32 |
0.5 |
| PK |
40.0 |
4.32 |
0.5 |
| PK |
50.0 |
4.32 |
0.5 |
| PK |
63.0 |
4.32 |
0.5 |
| PK |
80.0 |
4.32 |
0.5 |
| PK |
100.0 |
4.32 |
0.5 |
| PK |
125.0 |
4.32 |
0.25 |
| PK |
160.0 |
4.32 |
0.25 |
| PK |
200.0 |
4.32 |
0.0 |
| PK |
250.0 |
4.32 |
0.0 |
| PK |
315.0 |
4.32 |
0.0 |
| PK |
400.0 |
4.32 |
0.0 |
| PK |
500.0 |
4.32 |
0.0 |
| PK |
630.0 |
4.32 |
-0.25 |
| PK |
800.0 |
4.32 |
-0.5 |
| PK |
1000.0 |
4.32 |
-0.25 |
| PK |
1250.0 |
4.32 |
0.25 |
| PK |
1600.0 |
4.32 |
1.0 |
| PK |
2000.0 |
4.32 |
0.25 |
| PK |
2500.0 |
4.32 |
0.25 |
| PK |
3150.0 |
4.32 |
0.25 |
| PK |
4000.0 |
4.32 |
0.25 |
| PK |
5000.0 |
4.32 |
0.0 |
| PK |
6300.0 |
4.32 |
0.0 |
| PK |
8000.0 |
4.32 |
0.0 |
| PK |
10000.0 |
4.32 |
0.25 |
| PK |
12000.0 |
4.32 |
0.5 |
| PK |
16000.0 |
4.32 |
1.25 |
| PK |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
