- Quality of the measurement data is high.
- Origin of the data is ASR.
- Format of the data is generated by a Klippel NFS .
-
Sensitivity:
- Measured: 79.1 dB (avg. 300Hz-3kHz for 2.83V measured at 1m).
- -3dB (resp. -6db) point v.s. reference is at 63.0Hz (resp. 52.7Hz).
- Reference level is normalised to 0.0dB computed over the frequency range [300.0Hz, 5000.0Hz].
- Frequency deviation is 4.3dB over the same frequency range.
- Tonality (Preference) Score
- Tonality (Preference) Score is 2.8
and would be 5.22 with a
perfect subwoofer.
- Details: NBD: ON 0.675, LW 0.576, SP 0.608, PIR 0.57; SM: SP0.589, PIR0.398; LFQ 0.625, LFX 52Hz
- Tonality (Preference) Score is 5.96
with an EQ and would be 7.7 with a
perfect subwoofer and the same EQ.
- Details: NBD: ON 0.394, LW 0.34, SP 0.415, PIR 0.349; SM: SP0.919, PIR0.882; LFQ 0.566, LFX 36Hz
- Tonality (Preference) Score is 2.8
and would be 5.22 with a
perfect subwoofer.
- Link to Original review.

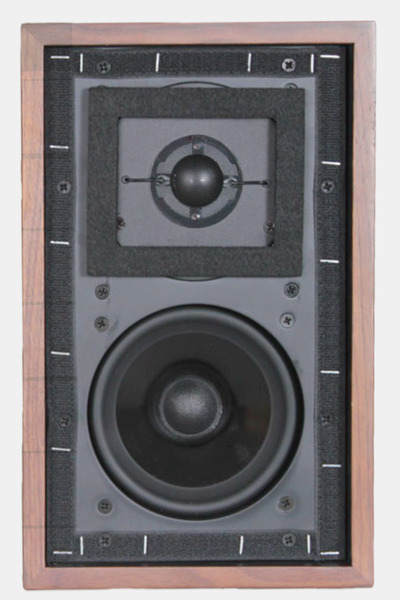

SoundArtist LS3|5A is a passive bookshelves that cost around 630 USD for a pair.
| AutomaticEQ (IIR) | |||
| Set preamp gain to: -4.6dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 36.0 | 1.62 | 5.0 |
| PK | 139.0 | 1.11 | -7.81 |
| PK | 235.0 | 0.78 | 3.69 |
| PK | 942.0 | 1.01 | -5.8 |
| PK | 2023.0 | 0.57 | 4.41 |
| PK | 4989.0 | 2.15 | -5.39 |
| PK | 15685.0 | 0.96 | -6.06 |
| Download | |||
