What we know about the measurement:

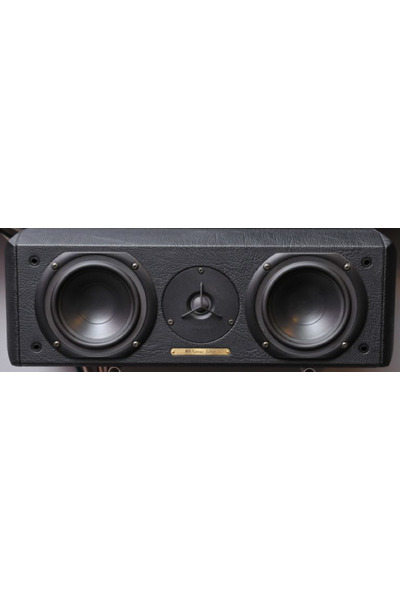

Sonus Faber Picolo is a passive center that cost around 585 USD

  • Quality of the measurement data is low.
  • Origin of the data is Misc.
  • Format of the data is a set of 36 horizontal and 36 vertical measurements .
  • -3dB (resp. -6db) point v.s. reference is at 87.2Hz (resp. 73.4Hz).
  • Reference level is normalised to -0.2dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 4.3dB over the same frequency range.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.56 and would be 7.35 with a perfect subwoofer.
      • Details: NBD: ON 0.491, LW 0.425, SP 0.406, PIR 0.381; SM: SP0.893, PIR0.878; LFQ 0.245, LFX 64Hz
  • Link to original Review: asr review. Links to other reviews: snv review .
  • Vendor specifications:
    • Sensitivity 86 dB
    • Impedance 8 Ohm
    • Size
      • Width 485mm
      • Height 170mm
      • Depth 235mm
    • Weight 10.0kg
Sonus Faber Picolo
AutomaticEQ (IIR)
Set preamp gain to: -2.7dB.
Type Freq Q Gain
PK 65.0 0.49 2.99
PK 134.0 1.86 -2.12
PK 487.0 0.45 -2.24
PK 504.0 2.32 2.39
PK 1381.0 0.72 2.93
PK 1429.0 3.0 -4.1
PK 5732.0 0.5 -1.75
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Sonus Faber Picolo filters_auto_eq

AutomaticEQ

Sonus Faber Picolo filters_eq_full

Target v.s. EQ
CEA2034
CEA2034 Normalized
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
;
