What we know about the measurement:

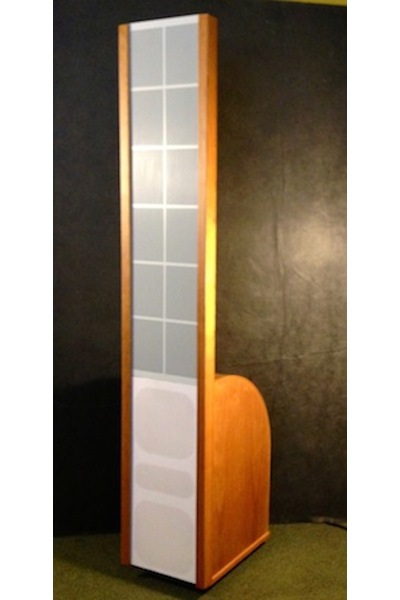

Sanders Sound Systems Model 11 is a passive panel

  • Quality of the measurement data is low.
  • Origin of the data is Princeton.
  • Format of the data is .
  • Sensitivity: 89.8dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • Reference level is normalised to -1.5dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 4.0dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-10.0°, 10.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Note: The tonality (Preference) score does not make sense for panel speakers. Don't give too much credits to the value.
    • Tonality (Preference) Score is -1.13 and would be 5.53 with a perfect subwoofer.
      • Details: NBD: ON 0.534, LW 0.661, SP 0.848, PIR 0.671; SM: SP0.784, PIR0.513; LFQ 10.0, LFX 509Hz
    • Tonality (Preference) Score is -0.5 with an EQ and would be 6.16 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.484, LW 0.612, SP 0.693, PIR 0.585; SM: SP0.842, PIR0.62; LFQ 10.0, LFX 509Hz
  • Link to Original review.
Sanders Sound Systems Model 11
AutomaticEQ (IIR)
Set preamp gain to: -2.9dB.
Type Freq Q Gain
3 22.0 0.27 -8.69
3 29.0 0.33 -8.98
3 38.0 0.27 -8.89
3 46.0 0.27 -8.7
3 54.0 0.29 -8.75
3 65.0 0.26 -8.72
3 5165.0 0.56 2.96
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Sanders Sound Systems Model 11 filters_auto_eq

AutomaticEQ

Sanders Sound Systems Model 11 filters_eq_full

Target v.s. EQ

Sanders Sound Systems Model 11
Graphic EQ 15 bands
Set preamp gain to: -1.7dB.
Type Freq Q Gain
3 25.0 2.14 0.0
3 40.0 2.14 0.0
3 63.0 2.14 0.0
3 100.0 2.14 0.0
3 160.0 2.14 0.0
3 250.0 2.14 0.0
3 400.0 2.14 0.0
3 630.0 2.14 0.25
3 1000.0 2.14 0.5
3 1600.0 2.14 0.5
3 2500.0 2.14 0.75
3 4000.0 2.14 1.25
3 6300.0 2.14 1.25
3 10000.0 2.14 1.25
3 16000.0 2.14 0.75
Download

These EQ is designed for a 15 bands graphical EQ.

Sanders Sound Systems Model 11
Graphic EQ 31 bands
Set preamp gain to: -1.9dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.0
3 31.0 4.32 0.0
3 40.0 4.32 0.0
3 50.0 4.32 0.0
3 63.0 4.32 0.0
3 80.0 4.32 0.0
3 100.0 4.32 0.0
3 125.0 4.32 0.0
3 160.0 4.32 0.0
3 200.0 4.32 0.0
3 250.0 4.32 0.0
3 315.0 4.32 0.0
3 400.0 4.32 0.0
3 500.0 4.32 0.0
3 630.0 4.32 0.25
3 800.0 4.32 0.5
3 1000.0 4.32 0.5
3 1250.0 4.32 0.5
3 1600.0 4.32 0.5
3 2000.0 4.32 0.5
3 2500.0 4.32 0.75
3 3150.0 4.32 1.0
3 4000.0 4.32 1.25
3 5000.0 4.32 1.25
3 6300.0 4.32 1.25
3 8000.0 4.32 1.25
3 10000.0 4.32 1.25
3 12000.0 4.32 1.0
3 16000.0 4.32 0.75
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

Sanders Sound Systems Model 11: comparison between EQs
Sanders Sound Systems Model 11

Comparison betweens various EQs

Sanders Sound Systems Model 11

Improvements made by EQ
