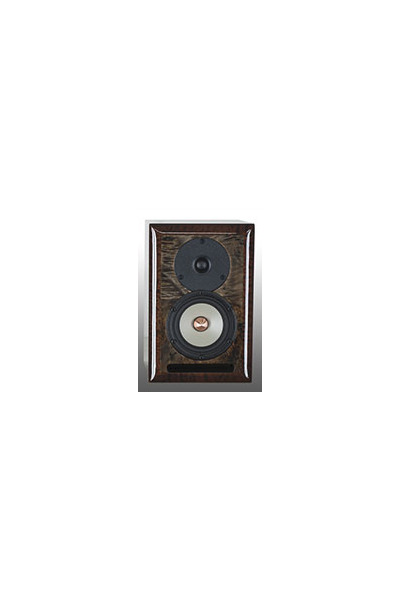

What we know about the measurement:
- Quality of the measurement data is
high.
-
Origin of the data is ASR.
-
Format of the data is
generated by a Klippel NFS
.
-
Sensitivity: 78.3dB (avg. 100Hz-1kHz for 2.83V estimated at 1m)
-
-3dB (resp. -6db) point v.s. reference is at 55.7Hz (resp. 46.9Hz).
-
Reference level is normalised to 0.1dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 5.2dB over the same frequency range.
- Directivity
-
Horizontal directivity
is (-80.0°, 70.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
-
Vertical directivity
is (-30.0°, 30.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Tonality (Preference) Score is 3.84
and would be 6.04 with a
perfect subwoofer.
- Details:
NBD: ON 0.44,
LW 0.39, SP
0.418, PIR
0.379; SM:
SP0.529,
PIR0.253; LFQ
0.663, LFX 46Hz
- Tonality (Preference) Score is 6.19
with an EQ and would be 8.07 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.357,
LW 0.309, SP
0.281, PIR
0.241; SM:
SP0.887,
PIR0.864; LFQ 0.663, LFX 39Hz
- Link to Original review.
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -3.6dB.
|
| Type |
Freq |
Q |
Gain |
| 5 |
73.0 |
0.37 |
2.96 |
| 3 |
129.0 |
0.79 |
-1.72 |
| 3 |
447.0 |
0.53 |
1.11 |
| 3 |
625.0 |
2.88 |
2.98 |
| 3 |
1442.0 |
1.65 |
-2.6 |
| 3 |
3325.0 |
2.13 |
-1.63 |
| 3 |
4803.0 |
2.77 |
-2.31 |
| 3 |
7669.0 |
0.75 |
-1.47 |
| 3 |
9372.0 |
1.22 |
-2.17 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
flipflop@ASR (IIR)
|
|
Set preamp gain to: -4.5dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
423.0 |
6.0 |
0.3 |
| 3 |
511.0 |
8.5 |
-2.1 |
| 3 |
553.0 |
8.0 |
4.8 |
| 3 |
614.0 |
7.5 |
1.3 |
| 3 |
678.0 |
10.0 |
2.3 |
| 3 |
720.0 |
15.0 |
1.0 |
| 3 |
1030.0 |
5.0 |
-4.6 |
| 3 |
1094.0 |
5.0 |
3.5 |
| 3 |
1290.0 |
20.0 |
-0.4 |
| 3 |
1539.0 |
5.0 |
-1.5 |
| 3 |
1678.0 |
18.0 |
0.5 |
| 3 |
1800.0 |
20.0 |
-0.5 |
| 3 |
2560.0 |
14.0 |
1.1 |
| 3 |
3310.0 |
10.0 |
-0.3 |
| 3 |
4270.0 |
10.0 |
0.8 |
| 3 |
4315.0 |
1.0 |
-3.6 |
| 3 |
6005.0 |
7.0 |
0.7 |
| 3 |
8660.0 |
5.0 |
1.3 |
| 3 |
9655.0 |
1.001 |
-5.2 |
| 3 |
12200.0 |
1.0 |
0.8 |
|
Download
|
These EQ is designed by ASR member flipflop.
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -0.6dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
25.0 |
2.14 |
0.5 |
| 3 |
40.0 |
2.14 |
0.5 |
| 3 |
63.0 |
2.14 |
0.25 |
| 3 |
100.0 |
2.14 |
-0.25 |
| 3 |
160.0 |
2.14 |
-0.25 |
| 3 |
250.0 |
2.14 |
-0.25 |
| 3 |
400.0 |
2.14 |
0.0 |
| 3 |
630.0 |
2.14 |
0.5 |
| 3 |
1000.0 |
2.14 |
-0.25 |
| 3 |
1600.0 |
2.14 |
-0.25 |
| 3 |
2500.0 |
2.14 |
-0.25 |
| 3 |
4000.0 |
2.14 |
-0.75 |
| 3 |
6300.0 |
2.14 |
-0.75 |
| 3 |
10000.0 |
2.14 |
-0.75 |
| 3 |
16000.0 |
2.14 |
0.0 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -0.4dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
20.0 |
4.32 |
0.0 |
| 3 |
25.0 |
4.32 |
0.25 |
| 3 |
31.0 |
4.32 |
0.25 |
| 3 |
40.0 |
4.32 |
0.25 |
| 3 |
50.0 |
4.32 |
0.25 |
| 3 |
63.0 |
4.32 |
0.25 |
| 3 |
80.0 |
4.32 |
0.0 |
| 3 |
100.0 |
4.32 |
-0.25 |
| 3 |
125.0 |
4.32 |
-0.25 |
| 3 |
160.0 |
4.32 |
-0.25 |
| 3 |
200.0 |
4.32 |
-0.25 |
| 3 |
250.0 |
4.32 |
-0.25 |
| 3 |
315.0 |
4.32 |
0.0 |
| 3 |
400.0 |
4.32 |
-0.25 |
| 3 |
500.0 |
4.32 |
0.0 |
| 3 |
630.0 |
4.32 |
0.25 |
| 3 |
800.0 |
4.32 |
0.0 |
| 3 |
1000.0 |
4.32 |
-0.25 |
| 3 |
1250.0 |
4.32 |
-0.25 |
| 3 |
1600.0 |
4.32 |
-0.25 |
| 3 |
2000.0 |
4.32 |
-0.25 |
| 3 |
2500.0 |
4.32 |
-0.25 |
| 3 |
3150.0 |
4.32 |
-0.5 |
| 3 |
4000.0 |
4.32 |
-0.75 |
| 3 |
5000.0 |
4.32 |
-0.75 |
| 3 |
6300.0 |
4.32 |
-0.75 |
| 3 |
8000.0 |
4.32 |
-0.75 |
| 3 |
10000.0 |
4.32 |
-0.75 |
| 3 |
12000.0 |
4.32 |
-0.5 |
| 3 |
16000.0 |
4.32 |
-0.25 |
| 3 |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
