What we know about the measurement:

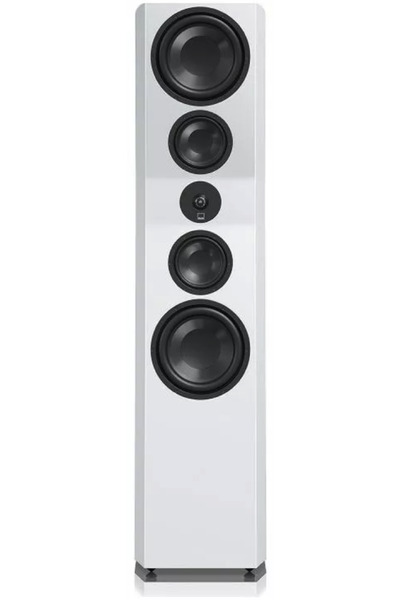

SVS Ultra Evolution Pinnacle Tower is a passive floorstanders that cost around 5000 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • -3dB (resp. -6db) point v.s. reference is at 41.0Hz (resp. 31.5Hz).
  • Reference level is normalised to -0.2dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.8dB over the same frequency range.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.88 and would be 6.11 with a perfect subwoofer.
      • Details: NBD: ON 0.655, LW 0.472, SP 0.5, PIR 0.442; SM: SP0.652, PIR0.595; LFQ 1.248, LFX 27Hz
    • Tonality (Preference) Score is 6.43 with an EQ and would be 7.6 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.531, LW 0.38, SP 0.373, PIR 0.286; SM: SP0.878, PIR0.904; LFQ 1.248, LFX 27Hz
  • Link to original Review: eac review. Links to other reviews: yt review .
  • Vendor specifications:
    • Sensitivity 88 dB
    • Size
      • Width 300mm
      • Height 1260mm
      • Depth 460.7mm
    • Weight 43.9kg
SVS Ultra Evolution Pinnacle Tower
AutomaticEQ (IIR)
Set preamp gain to: -1.6dB.
Type Freq Q Gain
PK 80.0 2.34 -4.58
PK 144.0 1.81 -1.02
PK 184.0 2.45 1.31
PK 252.0 1.26 1.32
PK 666.0 2.98 -2.08
PK 1480.0 0.85 2.8
PK 3068.0 0.68 -2.7
Download
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
Improvement made by adding the above EQ
EQ
AutoEQ
Target v.s. EQ
Target v.s. EQ
Histogram of errors
On Axis (fullrange)
Listening Window (fullrange)
Predicted In-Room Response (fullrange)
;
