What we know about the measurement:

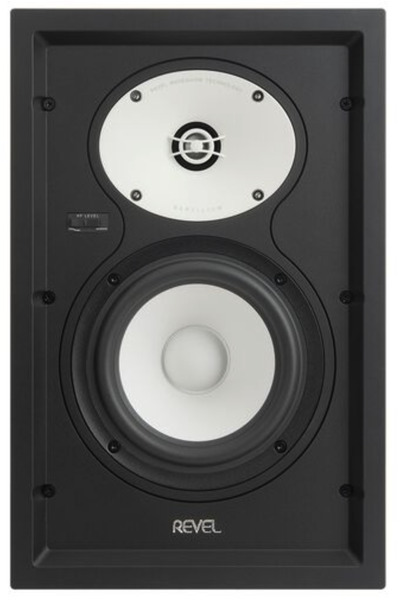

Revel W126Be is a passive inwall that cost around 1650 USD each.

  • Quality of the measurement data is medium.
  • Origin of the data is Revel.
  • Format of the data is a scanned image .
  • Sensitivity: 89.9dB (avg. 100Hz-1kHz for 2.83V estimated at 1m)
  • -3dB (resp. -6db) point v.s. reference is at 89.7Hz (resp. 61.7Hz).
  • Reference level is normalised to 0.4dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 1.7dB over the same frequency range.
  • Tonality (Preference) Score
    • Note: The tonality (Preference) score does not make sense for inwall speakers. Don't give too much credits to the value.
    • Tonality (Preference) Score is 5.02 and would be 7.6 with a perfect subwoofer.
      • Details: NBD: ON 0.392, LW 0.283, SP 0.258, PIR 0.231; SM: SP0.802, PIR0.684; LFQ 0.149, LFX 57Hz
    • Tonality (Preference) Score is 6.02 with an EQ and would be 8.51 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.343, LW 0.188, SP 0.181, PIR 0.139; SM: SP0.922, PIR0.908; LFQ 0.149, LFX 54Hz
  • Link to Original review.
  • Vendor specifications:
    • Sensitivity 89 dB
    • Impedance 4 Ohm
    • SPL
      • peak: 105 dB
    • Size
      • Width 260mm
      • Height 395mm
      • Depth 97 mm)
    • Weight 6.4 kg
Revel W126Be
AutomaticEQ LW (IIR)
Set preamp gain to: -2.3dB.
Type Freq Q Gain
3 95.0 2.49 2.65
3 439.0 0.41 -2.02
3 454.0 1.23 3.0
3 5165.0 2.16 -1.61
Download

These EQ optimise for a flat listening window and is a good start for near field listening like on your desk.

Revel W126Be filters_auto_eq

AutomaticEQ

Revel W126Be filters_eq_full

Target v.s. EQ

Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
