What we know about the measurement:

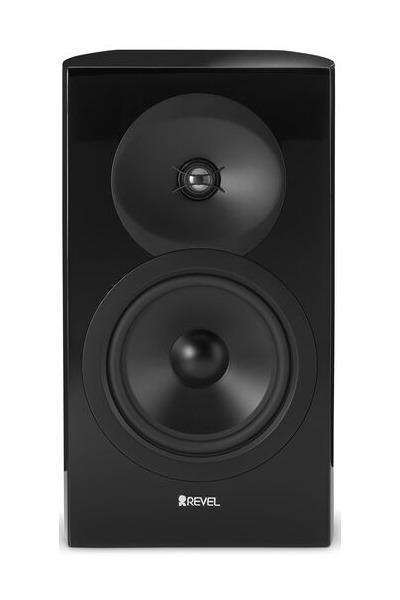

Revel M16 is a passive bookshelves that cost around 900 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is ASR.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 85.9dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 60.1Hz (resp. 52.7Hz).
  • Reference level is normalised to -0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 1.7dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-70.0°, 60.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 5.45 and would be 7.67 with a perfect subwoofer.
      • Details: NBD: ON 0.432, LW 0.363, SP 0.324, PIR 0.325; SM: SP0.929, PIR0.88; LFQ 0.552, LFX 47Hz
    • Tonality (Preference) Score is 6.71 with an EQ and would be 8.29 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.361, LW 0.283, SP 0.261, PIR 0.235; SM: SP0.964, PIR0.953; LFQ 0.673, LFX 33Hz
  • Link to original Review: asr review. Links to other reviews: asr-dominikz review , asr-ageve review .
  • Vendor specifications:
    • Sensitivity 86 dB
    • Impedance 6 Ohm
    • Size
      • Width 220mm
      • Height 370mm
      • Depth 370 mm)
    • Weight 7.26 kg
Revel M16
AutomaticEQ (IIR)
Set preamp gain to: -5.0dB.
Type Freq Q Gain
3 33.0 1.32 3.0
3 60.0 0.31 3.0
3 105.0 1.07 -5.62
3 321.0 2.06 1.6
3 643.0 2.56 1.88
3 1700.0 0.25 -3.04
3 2023.0 0.69 2.95
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Revel M16 filters_auto_eq

AutomaticEQ

Revel M16 filters_eq_full

Target v.s. EQ

Revel M16
flipflop@ASR (IIR)
Set preamp gain to: -1.0dB.
Type Freq Q Gain
3 323.0 13.0 1.0
3 355.0 13.0 -0.8
3 408.0 10.0 1.3
3 454.0 6.0 -1.5
3 631.0 5.0 0.3
3 983.0 2.33 -1.3
3 1100.0 10.0 0.6
3 1255.0 8.0 -0.4
3 2090.0 22.0 -0.6
3 2235.0 17.0 1.0
3 2550.0 5.5 1.5
3 4051.0 2.389 2.3
3 5118.0 1.018 -3.6
3 5750.0 5.0 2.3
3 7770.0 8.0 0.9
3 8550.0 9.0 -1.2
3 9550.0 9.0 0.4
3 10577.0 5.0 -0.9
3 11950.0 9.0 0.7
3 14170.0 3.3 1.2
Download

These EQ is designed by ASR member flipflop.

Revel M16
Graphic EQ 15 bands
Set preamp gain to: -0.3dB.
Type Freq Q Gain
3 25.0 2.14 0.25
3 40.0 2.14 0.25
3 63.0 2.14 0.25
3 100.0 2.14 -0.5
3 160.0 2.14 -0.25
3 250.0 2.14 0.0
3 400.0 2.14 0.0
3 630.0 2.14 0.0
3 1000.0 2.14 0.0
3 1600.0 2.14 0.0
3 2500.0 2.14 0.25
3 4000.0 2.14 0.0
3 6300.0 2.14 0.0
3 10000.0 2.14 0.0
3 16000.0 2.14 0.25
Download

These EQ is designed for a 15 bands graphical EQ.

Revel M16
Graphic EQ 31 bands
Set preamp gain to: -0.8dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.5
3 63.0 4.32 0.25
3 80.0 4.32 -0.25
3 100.0 4.32 -0.5
3 125.0 4.32 -0.5
3 160.0 4.32 -0.25
3 200.0 4.32 0.0
3 250.0 4.32 0.0
3 315.0 4.32 0.25
3 400.0 4.32 0.0
3 500.0 4.32 0.0
3 630.0 4.32 0.25
3 800.0 4.32 0.0
3 1000.0 4.32 -0.25
3 1250.0 4.32 0.0
3 1600.0 4.32 0.0
3 2000.0 4.32 0.0
3 2500.0 4.32 0.25
3 3150.0 4.32 0.25
3 4000.0 4.32 0.25
3 5000.0 4.32 0.0
3 6300.0 4.32 0.25
3 8000.0 4.32 0.25
3 10000.0 4.32 0.25
3 12000.0 4.32 0.5
3 16000.0 4.32 0.75
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

Revel M16: comparison between EQs
Revel M16

Comparison betweens various EQs

Revel M16

Improvements made by EQ

Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
