What we know about the measurement:

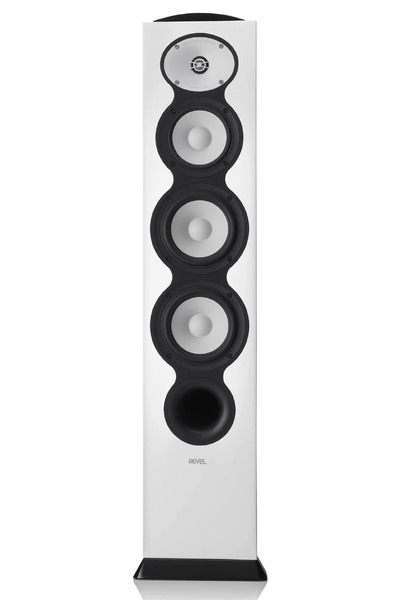

Revel F226be is a passive floorstanders that cost around 2900 USD each.

  • Quality of the measurement data is unknown.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is a set of 36 horizontal and 36 vertical measurements .
  • -3dB (resp. -6db) point v.s. reference is at 61.5Hz (resp. 49.8Hz).
  • Reference level is normalised to 0.4dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 1.2dB over the same frequency range.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 5.63 and would be 7.83 with a perfect subwoofer.
      • Details: NBD: ON 0.265, LW 0.195, SP 0.253, PIR 0.227; SM: SP0.848, PIR0.642; LFQ 1.578, LFX 46Hz
    • Tonality (Preference) Score is 7.1 with an EQ and would be 8.76 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.225, LW 0.195, SP 0.247, PIR 0.201; SM: SP0.981, PIR0.967; LFQ 1.578, LFX 35Hz
  • Link to original Review: eac review. Links to other reviews: asr review .
Revel F226be
AutomaticEQ (IIR)
Set preamp gain to: -3.0dB.
Type Freq Q Gain
PK 36.0 0.73 3.0
PK 243.0 0.79 -0.94
PK 1429.0 2.4 -1.45
PK 1887.0 0.71 1.07
PK 3912.0 2.89 -1.13
PK 9319.0 0.34 -2.31
PK 11476.0 1.11 -0.48
Download
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
Revel F226be
Graphic EQ 15 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
PK 25.0 2.14 0.5
PK 40.0 2.14 0.5
PK 63.0 2.14 0.5
PK 100.0 2.14 0.25
PK 160.0 2.14 0.0
PK 250.0 2.14 0.0
PK 400.0 2.14 0.0
PK 630.0 2.14 0.0
PK 1000.0 2.14 0.0
PK 1600.0 2.14 0.0
PK 2500.0 2.14 0.25
PK 4000.0 2.14 -0.25
PK 6300.0 2.14 -0.25
PK 10000.0 2.14 -0.25
PK 16000.0 2.14 0.0
Download
This EQ is designed for a 15 bands graphical EQ.
Revel F226be
Graphic EQ 31 bands
Set preamp gain to: -0.8dB.
Type Freq Q Gain
PK 20.0 4.32 0.0
PK 25.0 4.32 0.5
PK 31.0 4.32 0.5
PK 40.0 4.32 0.5
PK 50.0 4.32 0.5
PK 63.0 4.32 0.5
PK 80.0 4.32 0.25
PK 100.0 4.32 0.25
PK 125.0 4.32 0.25
PK 160.0 4.32 0.0
PK 200.0 4.32 0.0
PK 250.0 4.32 0.0
PK 315.0 4.32 0.0
PK 400.0 4.32 0.0
PK 500.0 4.32 0.0
PK 630.0 4.32 0.0
PK 800.0 4.32 0.25
PK 1000.0 4.32 0.0
PK 1250.0 4.32 0.0
PK 1600.0 4.32 0.0
PK 2000.0 4.32 0.25
PK 2500.0 4.32 0.25
PK 3150.0 4.32 0.0
PK 4000.0 4.32 -0.25
PK 5000.0 4.32 0.0
PK 6300.0 4.32 -0.25
PK 8000.0 4.32 -0.25
PK 10000.0 4.32 -0.25
PK 12000.0 4.32 -0.25
PK 16000.0 4.32 0.0
PK 20000.0 4.32 0.0
Download
This EQ is designed for a 31 bands graphical EQ.
Improvement made by adding the above EQ
EQ
AutoEQ
Target v.s. EQ
Target v.s. EQ
Histogram of errors
On Axis (fullrange)
Listening Window (fullrange)
Predicted In-Room Response (fullrange)
Revel F226be: comparison between EQs
AutomaticEQ
Target v.s. EQ
Comparison betweens various EQs
;
