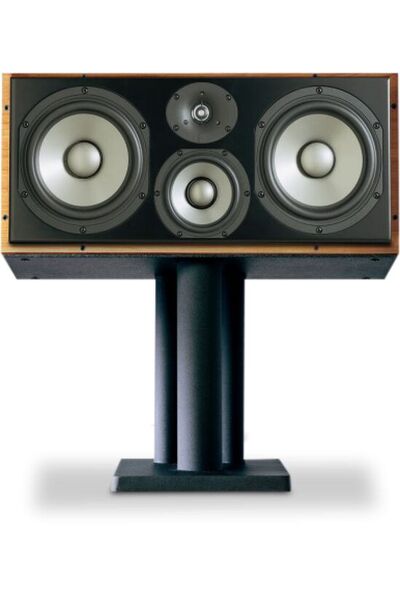

What we know about the measurement:
- Quality of the measurement data is
high.
-
Origin of the data is ASR.
-
Format of the data is
generated by a Klippel NFS
.
-
Sensitivity: 89.3dB (avg. 100Hz-1kHz for 2.83V estimated at 1m)
-
-3dB (resp. -6db) point v.s. reference is at 76.9Hz (resp. 62.3Hz).
-
Reference level is normalised to 0.0dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 3.0dB over the same frequency range.
- Directivity
-
Horizontal directivity
is (-80.0°, 70.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
-
Vertical directivity
is (-20.0°, 40.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Tonality (Preference) Score is 4.62
and would be 7.47 with a
perfect subwoofer.
- Details:
NBD: ON 0.454,
LW 0.332, SP
0.383, PIR
0.337; SM:
SP0.905,
PIR0.832; LFQ
1.397, LFX 66Hz
- Tonality (Preference) Score is 5.79
with an EQ and would be 8.26 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.343,
LW 0.305, SP
0.32, PIR
0.257; SM:
SP0.968,
PIR0.949; LFQ 1.397, LFX 54Hz
- Vertical measurement
- Link to Original review.
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -2.9dB.
|
| Type |
Freq |
Q |
Gain |
| 5 |
93.0 |
0.99 |
2.96 |
| 3 |
253.0 |
0.66 |
-2.06 |
| 3 |
299.0 |
1.5 |
1.8 |
| 3 |
529.0 |
1.58 |
0.43 |
| 3 |
998.0 |
1.87 |
2.26 |
| 3 |
1442.0 |
1.52 |
-2.09 |
| 3 |
1948.0 |
2.88 |
2.47 |
| 3 |
4966.0 |
0.52 |
-1.0 |
| 3 |
15474.0 |
0.81 |
2.72 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
flipflop@ASR (IIR)
|
|
Set preamp gain to: -2.8dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
379.0 |
10.0 |
-0.5 |
| 3 |
522.0 |
9.0 |
0.5 |
| 3 |
685.0 |
2.15 |
-1.4 |
| 3 |
793.0 |
1.022 |
1.6 |
| 3 |
927.0 |
9.0 |
-0.4 |
| 3 |
1085.0 |
7.5 |
0.5 |
| 3 |
1265.0 |
4.1 |
-1.9 |
| 3 |
1552.0 |
5.1 |
-0.9 |
| 3 |
1970.0 |
5.0 |
0.8 |
| 3 |
2790.0 |
7.0 |
-0.5 |
| 3 |
3605.0 |
1.1 |
-1.6 |
| 3 |
3920.0 |
4.8 |
0.8 |
| 3 |
5115.0 |
7.0 |
-0.8 |
| 3 |
6930.0 |
4.4 |
-1.8 |
| 3 |
8000.0 |
11.0 |
1.1 |
| 3 |
8900.0 |
5.0 |
-1.6 |
| 3 |
9800.0 |
14.0 |
0.7 |
| 3 |
10900.0 |
7.0 |
-0.9 |
| 3 |
12200.0 |
9.0 |
0.5 |
| 6 |
15000.0 |
1.5772935127949521 |
2.9 |
|
Download
|
These EQ is designed by ASR member flipflop.
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -0.7dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
25.0 |
2.14 |
0.5 |
| 3 |
40.0 |
2.14 |
0.5 |
| 3 |
63.0 |
2.14 |
0.5 |
| 3 |
100.0 |
2.14 |
0.0 |
| 3 |
160.0 |
2.14 |
0.0 |
| 3 |
250.0 |
2.14 |
0.0 |
| 3 |
400.0 |
2.14 |
0.0 |
| 3 |
630.0 |
2.14 |
0.0 |
| 3 |
1000.0 |
2.14 |
0.25 |
| 3 |
1600.0 |
2.14 |
0.0 |
| 3 |
2500.0 |
2.14 |
0.0 |
| 3 |
4000.0 |
2.14 |
0.0 |
| 3 |
6300.0 |
2.14 |
0.0 |
| 3 |
10000.0 |
2.14 |
0.0 |
| 3 |
16000.0 |
2.14 |
0.75 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -0.8dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
20.0 |
4.32 |
0.0 |
| 3 |
25.0 |
4.32 |
0.5 |
| 3 |
31.0 |
4.32 |
0.5 |
| 3 |
40.0 |
4.32 |
0.5 |
| 3 |
50.0 |
4.32 |
0.5 |
| 3 |
63.0 |
4.32 |
0.5 |
| 3 |
80.0 |
4.32 |
0.25 |
| 3 |
100.0 |
4.32 |
0.0 |
| 3 |
125.0 |
4.32 |
0.0 |
| 3 |
160.0 |
4.32 |
-0.25 |
| 3 |
200.0 |
4.32 |
-0.25 |
| 3 |
250.0 |
4.32 |
0.0 |
| 3 |
315.0 |
4.32 |
0.0 |
| 3 |
400.0 |
4.32 |
0.0 |
| 3 |
500.0 |
4.32 |
0.0 |
| 3 |
630.0 |
4.32 |
0.0 |
| 3 |
800.0 |
4.32 |
0.25 |
| 3 |
1000.0 |
4.32 |
0.25 |
| 3 |
1250.0 |
4.32 |
0.0 |
| 3 |
1600.0 |
4.32 |
0.0 |
| 3 |
2000.0 |
4.32 |
0.25 |
| 3 |
2500.0 |
4.32 |
0.0 |
| 3 |
3150.0 |
4.32 |
0.0 |
| 3 |
4000.0 |
4.32 |
0.25 |
| 3 |
5000.0 |
4.32 |
0.0 |
| 3 |
6300.0 |
4.32 |
0.0 |
| 3 |
8000.0 |
4.32 |
0.0 |
| 3 |
10000.0 |
4.32 |
0.25 |
| 3 |
12000.0 |
4.32 |
0.5 |
| 3 |
16000.0 |
4.32 |
0.75 |
| 3 |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
