What we know about the measurement:

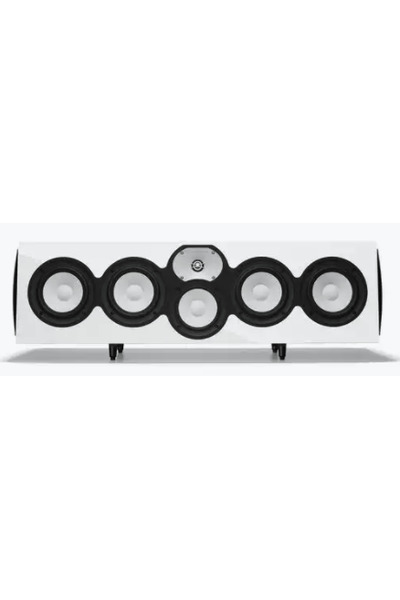

Revel C426Be is a passive center that cost around 4950 USD

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 90.7dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 66.7Hz (resp. 38.8Hz).
  • Reference level is normalised to 0.3dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.1dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-60.0°, 60.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 5.23 and would be 6.93 with a perfect subwoofer.
      • Details: NBD: ON 0.507, LW 0.407, SP 0.393, PIR 0.386; SM: SP0.859, PIR0.718; LFQ 1.412, LFX 35Hz
    • Tonality (Preference) Score is 5.74 with an EQ and would be 7.31 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.485, LW 0.382, SP 0.317, PIR 0.317; SM: SP0.904, PIR0.773; LFQ 1.529, LFX 33Hz
  • Link to original Review: eac review. Links to other reviews: yt review .
  • Vendor specifications:
    • Sensitivity 90 dB
    • Impedance 8 Ohm
    • Size
      • Width 980mm
      • Height 263mm
      • Depth 358mm
    • Weight 27.7kg
Revel C426Be
AutomaticEQ (IIR)
Set preamp gain to: -2.6dB.
Type Freq Q Gain
PK 37.0 1.14 2.95
PK 98.0 0.99 -2.1
PK 310.0 1.78 -0.86
PK 765.0 0.95 1.59
PK 2094.0 2.99 1.87
PK 2406.0 0.3 -1.13
PK 15685.0 1.31 1.38
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Revel C426Be filters_auto_eq

AutomaticEQ

Revel C426Be filters_eq_full

Target v.s. EQ

Revel C426Be
Graphic EQ 15 bands
Set preamp gain to: -0.3dB.
Type Freq Q Gain
PK 25.0 2.14 0.25
PK 40.0 2.14 0.25
PK 63.0 2.14 0.0
PK 100.0 2.14 -0.25
PK 160.0 2.14 -0.25
PK 250.0 2.14 0.0
PK 400.0 2.14 0.0
PK 630.0 2.14 0.0
PK 1000.0 2.14 0.0
PK 1600.0 2.14 -0.25
PK 2500.0 2.14 0.0
PK 4000.0 2.14 -0.25
PK 6300.0 2.14 -0.25
PK 10000.0 2.14 -0.25
PK 16000.0 2.14 0.0
Download

These EQ is designed for a 15 bands graphical EQ.

Revel C426Be
Graphic EQ 31 bands
Set preamp gain to: -0.4dB.
Type Freq Q Gain
PK 20.0 4.32 0.0
PK 25.0 4.32 0.25
PK 31.0 4.32 0.25
PK 40.0 4.32 0.25
PK 50.0 4.32 0.25
PK 63.0 4.32 0.0
PK 80.0 4.32 -0.5
PK 100.0 4.32 -0.25
PK 125.0 4.32 -0.25
PK 160.0 4.32 -0.25
PK 200.0 4.32 0.0
PK 250.0 4.32 0.0
PK 315.0 4.32 0.0
PK 400.0 4.32 0.0
PK 500.0 4.32 0.0
PK 630.0 4.32 0.25
PK 800.0 4.32 0.25
PK 1000.0 4.32 0.0
PK 1250.0 4.32 0.0
PK 1600.0 4.32 0.0
PK 2000.0 4.32 0.25
PK 2500.0 4.32 0.0
PK 3150.0 4.32 0.0
PK 4000.0 4.32 -0.25
PK 5000.0 4.32 -0.25
PK 6300.0 4.32 -0.25
PK 8000.0 4.32 -0.25
PK 10000.0 4.32 0.0
PK 12000.0 4.32 0.0
PK 16000.0 4.32 0.25
PK 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

Revel C426Be: comparison between EQs
Revel C426Be

Comparison betweens various EQs

Revel C426Be

Improvements made by EQ
CEA2034
CEA2034 Normalized
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
CEA2034
CEA2034 Normalized
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
