What we know about the measurement:

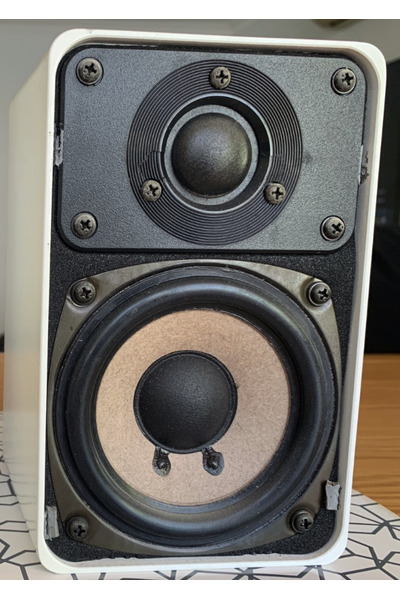

Realistic Tandy Minimus 7 is a passive bookshelves

  • Quality of the measurement data is low.
  • Origin of the data is Misc.
  • Format of the data is a set of 36 horizontal and 36 vertical measurements .
  • Sensitivity: 81.6dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 179.6Hz (resp. 136.5Hz).
  • Reference level is normalised to 1.0dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 6.4dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-70.0°, 70.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-10.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 0.36 and would be 4.64 with a perfect subwoofer.
      • Details: NBD: ON 0.623, LW 0.545, SP 0.571, PIR 0.512; SM: SP0.07, PIR0.018; LFQ 1.184, LFX 142Hz
    • Tonality (Preference) Score is 3.94 with an EQ and would be 7.3 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.416, LW 0.336, SP 0.454, PIR 0.374; SM: SP0.838, PIR0.765; LFQ 0.768, LFX 87Hz
  • Link to original Review: asr review. Links to other reviews: amg review .
Realistic Tandy Minimus 7
AutomaticEQ (IIR)
Set preamp gain to: -5.3dB.
Type Freq Q Gain
3 95.0 1.25 3.0
3 184.0 0.25 3.0
3 279.0 1.03 -3.02
3 765.0 2.95 -0.71
3 1161.0 1.58 3.0
3 4342.0 0.5 -7.07
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Realistic Tandy Minimus 7 filters_auto_eq

AutomaticEQ

Realistic Tandy Minimus 7 filters_eq_full

Target v.s. EQ

Realistic Tandy Minimus 7
Graphic EQ 15 bands
Set preamp gain to: -0.3dB.
Type Freq Q Gain
3 25.0 2.14 0.0
3 40.0 2.14 0.0
3 63.0 2.14 0.0
3 100.0 2.14 0.0
3 160.0 2.14 0.0
3 250.0 2.14 0.0
3 400.0 2.14 0.25
3 630.0 2.14 0.25
3 1000.0 2.14 0.0
3 1600.0 2.14 -0.25
3 2500.0 2.14 0.25
3 4000.0 2.14 -1.0
3 6300.0 2.14 -1.0
3 10000.0 2.14 -0.25
3 16000.0 2.14 0.0
Download

These EQ is designed for a 15 bands graphical EQ.

Realistic Tandy Minimus 7
Graphic EQ 31 bands
Set preamp gain to: -0.3dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.0
3 31.0 4.32 0.0
3 40.0 4.32 0.0
3 50.0 4.32 0.0
3 63.0 4.32 0.0
3 80.0 4.32 0.0
3 100.0 4.32 0.0
3 125.0 4.32 0.0
3 160.0 4.32 0.0
3 200.0 4.32 0.0
3 250.0 4.32 0.0
3 315.0 4.32 0.0
3 400.0 4.32 0.25
3 500.0 4.32 0.25
3 630.0 4.32 0.25
3 800.0 4.32 0.0
3 1000.0 4.32 0.0
3 1250.0 4.32 0.0
3 1600.0 4.32 -0.25
3 2000.0 4.32 0.0
3 2500.0 4.32 0.25
3 3150.0 4.32 0.0
3 4000.0 4.32 -0.75
3 5000.0 4.32 -0.5
3 6300.0 4.32 -0.75
3 8000.0 4.32 -0.5
3 10000.0 4.32 -0.25
3 12000.0 4.32 -0.25
3 16000.0 4.32 -0.25
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

Realistic Tandy Minimus 7: comparison between EQs
Realistic Tandy Minimus 7

Comparison betweens various EQs

Realistic Tandy Minimus 7

Improvements made by EQ

Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
