- Quality of the measurement data is medium.
- Origin of the data is RCF.
- Format of the data is a GLL file .
- -3dB (resp. -6db) point v.s. reference is at 87.5Hz (resp. 85.0Hz).
- Reference level is normalised to -0.3dB computed over the frequency range [300.0Hz, 5000.0Hz].
- Frequency deviation is 4.1dB over the same frequency range.
- Tonality (Preference) Score
- Tonality (Preference) Score is -0.41
and would be 2.9 with a
perfect subwoofer.
- Details: NBD: ON 0.95, LW 0.901, SP 0.847, PIR 0.848; SM: SP0.35, PIR0.05; LFQ 1.556, LFX 84Hz
- Tonality (Preference) Score is 2.48
with an EQ and would be 5.79 with a
perfect subwoofer and the same EQ.
- Details: NBD: ON 0.777, LW 0.668, SP 0.655, PIR 0.638; SM: SP0.897, PIR0.843; LFQ 1.556, LFX 84Hz
- Tonality (Preference) Score is -0.41
and would be 2.9 with a
perfect subwoofer.

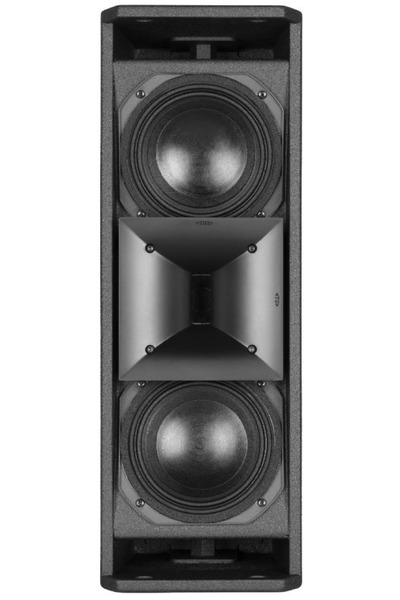

RCF NXL 14-A is an active liveportable that cost around 1200 USD each.
Vendor specifications
- Dispersion: 100° horizontal and 70° vertical.
- SPL
- peak: 128 dB
- Size
- Width 197mm
- Height 576mm
- Depth 270mm
- Weight 12.8kg
Directivity (-6dB)
| AutomaticEQ (IIR) | |||
| Set preamp gain to: -2.2dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 95.0 | 2.99 | -3.01 |
| PK | 113.0 | 3.0 | 3.0 |
| PK | 211.0 | 1.15 | 1.59 |
| PK | 424.0 | 3.0 | 3.0 |
| PK | 600.0 | 1.84 | -3.33 |
| PK | 2964.0 | 1.0 | 1.54 |
| PK | 14134.0 | 0.5 | -8.95 |
| Download | |||
