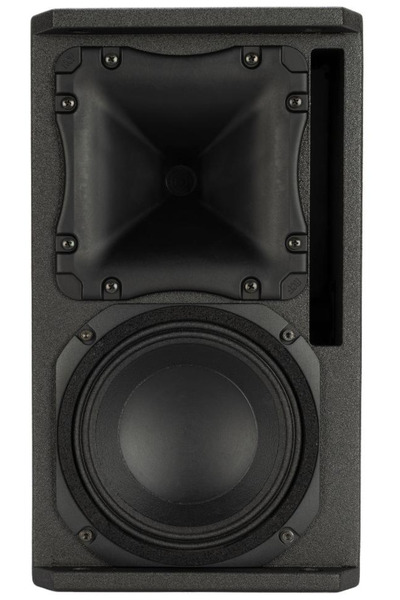

RCF KX 08-A is an active liveportable

  • Quality of the measurement data is medium.
  • Origin of the data is RCF.
  • Format of the data is a GLL file .
  • -3dB (resp. -6db) point v.s. reference is at 82.5Hz (resp. 77.5Hz).
  • Reference level is normalised to -0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.6dB over the same frequency range.
  • Tonality (Preference) Score is *** (measurement is truncated at low frequencies).
  • Tonality (Preference) Score with EQ is *** (measurement is truncated at low frequencies).
RCF KX 08-A

Vendor specifications

  • Dispersion: 100° horizontal and 70° vertical.
  • SPL
    • peak: 128 dB
  • Size
    • Width 345mm
    • Height 555mm
    • Depth 315mm
  • Weight 12.5kg

Directivity (-6dB)

AutomaticEQ (IIR)
Set preamp gain to: -2.0dB.
Type Freq Q Gain
PK 102.0 3.0 -4.14
PK 190.0 1.03 -3.3
PK 522.0 2.95 -1.25
PK 1161.0 2.99 1.75
PK 1642.0 3.0 1.63
PK 3912.0 1.27 2.96
PK 9989.0 0.38 -2.12
Download

This EQ optimise the Harman score and is a good start for far field listening like in your living room.
