What we know about the measurement:

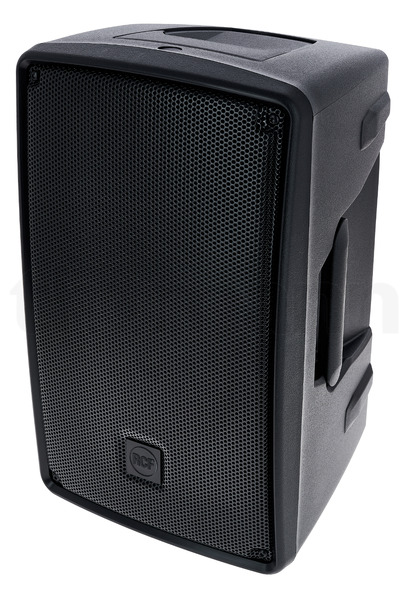

RCF HD 10-A MK5 is an active liveportable that cost around 469 USD each.

  • Quality of the measurement data is medium.
  • Origin of the data is RCF.
  • Format of the data is a GLL file .
  • -3dB (resp. -6db) point v.s. reference is at 69.0Hz (resp. 61.5Hz).
  • Reference level is normalised to 0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.6dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-30.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-10.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 2.59 and would be 5.34 with a perfect subwoofer.
      • Details: NBD: ON 0.481, LW 0.657, SP 0.812, PIR 0.703; SM: SP0.632, PIR0.413; LFQ 1.756, LFX 63Hz
    • Tonality (Preference) Score is 4.92 with an EQ and would be 7.67 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.2, LW 0.402, SP 0.662, PIR 0.5; SM: SP0.911, PIR0.854; LFQ 1.756, LFX 63Hz
  • Vendor specifications:
    • Dispersion: 90° horizontal and 60° vertical.
    • SPL
      • peak: 128 dB
    • Size
      • Width 303mm
      • Height 572mm
      • Depth 303 mm)
    • Weight 11.8 kg
RCF HD 10-A MK5
AutomaticEQ (IIR)
Set preamp gain to: -3.4dB.
Type Freq Q Gain
5 69.0 1.07 1.22
3 221.0 0.26 -1.26
3 604.0 2.2 2.48
3 844.0 2.95 -2.98
3 1067.0 2.99 2.91
3 2014.0 2.71 2.69
3 2461.0 0.5 1.38
3 7930.0 0.46 -2.15
3 12246.0 1.11 -2.71
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

RCF HD 10-A MK5 filters_auto_eq

AutomaticEQ

RCF HD 10-A MK5 filters_eq_full

Target v.s. EQ

RCF HD 10-A MK5
Graphic EQ 15 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 25.0 2.14 0.5
3 40.0 2.14 0.5
3 63.0 2.14 0.5
3 100.0 2.14 -0.25
3 160.0 2.14 0.0
3 250.0 2.14 0.0
3 400.0 2.14 0.0
3 630.0 2.14 0.25
3 1000.0 2.14 0.5
3 1600.0 2.14 0.5
3 2500.0 2.14 0.25
3 4000.0 2.14 0.0
3 6300.0 2.14 0.25
3 10000.0 2.14 -0.5
3 16000.0 2.14 0.25
Download

These EQ is designed for a 15 bands graphical EQ.

RCF HD 10-A MK5
Graphic EQ 31 bands
Set preamp gain to: -0.9dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.5
3 63.0 4.32 0.5
3 80.0 4.32 -0.25
3 100.0 4.32 -0.25
3 125.0 4.32 -0.25
3 160.0 4.32 0.0
3 200.0 4.32 -0.25
3 250.0 4.32 0.0
3 315.0 4.32 -0.25
3 400.0 4.32 -0.25
3 500.0 4.32 0.0
3 630.0 4.32 0.25
3 800.0 4.32 -0.25
3 1000.0 4.32 0.5
3 1250.0 4.32 0.25
3 1600.0 4.32 0.25
3 2000.0 4.32 0.75
3 2500.0 4.32 0.25
3 3150.0 4.32 0.25
3 4000.0 4.32 0.0
3 5000.0 4.32 -0.25
3 6300.0 4.32 0.0
3 8000.0 4.32 -0.25
3 10000.0 4.32 -0.5
3 12000.0 4.32 -0.5
3 16000.0 4.32 0.5
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

RCF HD 10-A MK5: comparison between EQs
RCF HD 10-A MK5

Comparison betweens various EQs

RCF HD 10-A MK5

Improvements made by EQ
CEA2034
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
CEA2034
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
