- Quality of the measurement data is high.
- Origin of the data is ErinsAudioCorner.
- Format of the data is generated by a Klippel NFS .
-
Sensitivity:
- Measured: 85.6 dB (avg. 300Hz-3kHz for 2.83V measured at 1m).
- -3dB (resp. -6db) point v.s. reference is at 85.0Hz (resp. 71.8Hz).
- Reference level is normalised to 0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
- Frequency deviation is 2.2dB over the same frequency range.
- Tonality (Preference) Score
- Tonality (Preference) Score is 3.82
and would be 6.73 with a
perfect subwoofer.
- Details: NBD: ON 0.35, LW 0.312, SP 0.304, PIR 0.264; SM: SP0.746, PIR0.308; LFQ 0.831, LFX 68Hz
- Tonality (Preference) Score is 6.05
with an EQ and would be 8.41 with a
perfect subwoofer and the same EQ.
- Details: NBD: ON 0.32, LW 0.237, SP 0.273, PIR 0.221; SM: SP0.973, PIR0.945; LFQ 0.719, LFX 51Hz
- Tonality (Preference) Score is 3.82
and would be 6.73 with a
perfect subwoofer.
- Link to original Review: eac review. .

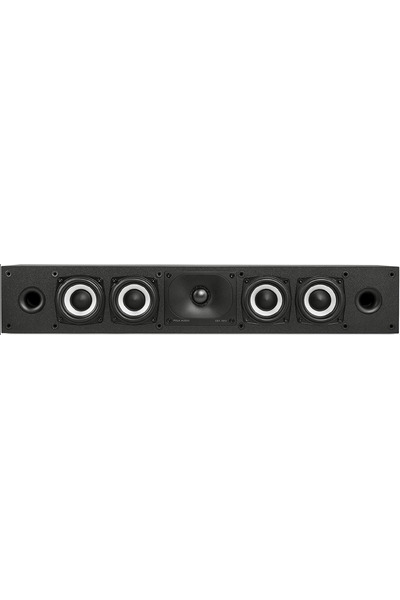

Polk Audio XT35 is a passive center that cost around 300 USD
| AutomaticEQ (IIR) | |||
| Set preamp gain to: -5.0dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 51.0 | 2.18 | 2.98 |
| PK | 85.0 | 0.34 | 2.96 |
| PK | 125.0 | 1.1 | -3.15 |
| PK | 235.0 | 1.02 | -1.08 |
| PK | 976.0 | 2.92 | 1.63 |
| PK | 2579.0 | 2.31 | 1.49 |
| PK | 11085.0 | 0.25 | -3.22 |
| Download | |||
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
| Graphic EQ 15 bands | |||
| Set preamp gain to: -0.7dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 25.0 | 2.14 | 0.5 |
| PK | 40.0 | 2.14 | 0.5 |
| PK | 63.0 | 2.14 | 0.5 |
| PK | 100.0 | 2.14 | 0.25 |
| PK | 160.0 | 2.14 | 0.0 |
| PK | 250.0 | 2.14 | 0.0 |
| PK | 400.0 | 2.14 | 0.0 |
| PK | 630.0 | 2.14 | 0.0 |
| PK | 1000.0 | 2.14 | 0.25 |
| PK | 1600.0 | 2.14 | 0.0 |
| PK | 2500.0 | 2.14 | 0.0 |
| PK | 4000.0 | 2.14 | -0.5 |
| PK | 6300.0 | 2.14 | -0.75 |
| PK | 10000.0 | 2.14 | -0.75 |
| PK | 16000.0 | 2.14 | -0.5 |
| Download | |||
This EQ is designed for a 15 bands graphical EQ.
| Graphic EQ 31 bands | |||
| Set preamp gain to: -0.4dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 20.0 | 4.32 | 0.0 |
| PK | 25.0 | 4.32 | 0.25 |
| PK | 31.0 | 4.32 | 0.25 |
| PK | 40.0 | 4.32 | 0.25 |
| PK | 50.0 | 4.32 | 0.25 |
| PK | 63.0 | 4.32 | 0.25 |
| PK | 80.0 | 4.32 | 0.25 |
| PK | 100.0 | 4.32 | 0.25 |
| PK | 125.0 | 4.32 | 0.0 |
| PK | 160.0 | 4.32 | 0.0 |
| PK | 200.0 | 4.32 | 0.0 |
| PK | 250.0 | 4.32 | 0.0 |
| PK | 315.0 | 4.32 | 0.0 |
| PK | 400.0 | 4.32 | 0.0 |
| PK | 500.0 | 4.32 | 0.0 |
| PK | 630.0 | 4.32 | 0.0 |
| PK | 800.0 | 4.32 | 0.25 |
| PK | 1000.0 | 4.32 | 0.25 |
| PK | 1250.0 | 4.32 | 0.0 |
| PK | 1600.0 | 4.32 | 0.0 |
| PK | 2000.0 | 4.32 | 0.0 |
| PK | 2500.0 | 4.32 | 0.0 |
| PK | 3150.0 | 4.32 | -0.25 |
| PK | 4000.0 | 4.32 | -0.25 |
| PK | 5000.0 | 4.32 | -0.5 |
| PK | 6300.0 | 4.32 | -0.5 |
| PK | 8000.0 | 4.32 | -0.5 |
| PK | 10000.0 | 4.32 | -0.75 |
| PK | 12000.0 | 4.32 | -0.75 |
| PK | 16000.0 | 4.32 | -0.5 |
| PK | 20000.0 | 4.32 | 0.0 |
| Download | |||
