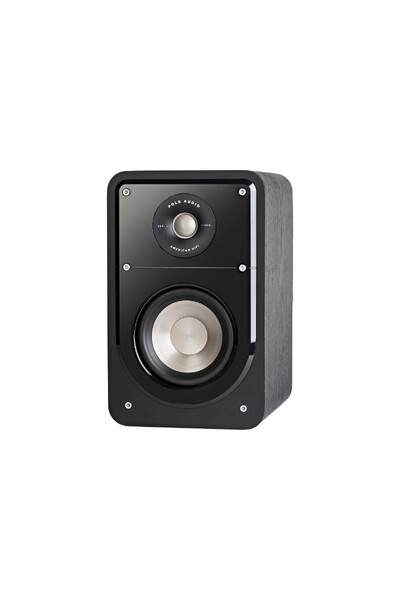

What we know about the measurement:
- Quality of the measurement data is
high.
-
Origin of the data is ASR.
-
Format of the data is
generated by a Klippel NFS
.
-
Sensitivity: 86.5dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
-
-3dB (resp. -6db) point v.s. reference is at 67.4Hz (resp. 60.1Hz).
-
Reference level is normalised to 0.1dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 2.8dB over the same frequency range.
- Directivity
-
Horizontal directivity
is (-60.0°, 60.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
-
Vertical directivity
is (-20.0°, 30.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Tonality (Preference) Score is 4.11
and would be 6.72 with a
perfect subwoofer.
- Details:
NBD: ON 0.431,
LW 0.37, SP
0.399, PIR
0.347; SM:
SP0.759,
PIR0.499; LFQ
0.517, LFX 58Hz
- Tonality (Preference) Score is 6.05
with an EQ and would be 8.42 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.307,
LW 0.236, SP
0.306, PIR
0.23; SM:
SP0.946,
PIR0.945; LFQ 0.517, LFX 51Hz
- Link to Original review.
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -2.5dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
58.0 |
1.45 |
2.95 |
| 3 |
105.0 |
1.29 |
-1.75 |
| 3 |
356.0 |
1.9 |
1.34 |
| 3 |
976.0 |
2.99 |
-2.27 |
| 3 |
1532.0 |
2.97 |
1.87 |
| 3 |
5165.0 |
1.19 |
-2.59 |
| 3 |
12736.0 |
0.82 |
-2.73 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
flipflop@ASR (IIR)
|
|
Set preamp gain to: -1.1dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
357.0 |
8.5 |
0.9 |
| 3 |
405.0 |
19.0 |
1.3 |
| 3 |
475.0 |
9.0 |
1.6 |
| 3 |
508.0 |
15.0 |
-1.5 |
| 3 |
560.0 |
15.0 |
-0.6 |
| 3 |
676.0 |
1.0 |
-1.0 |
| 3 |
753.0 |
7.0 |
-0.5 |
| 3 |
851.0 |
11.0 |
1.0 |
| 3 |
902.0 |
23.0 |
-1.8 |
| 3 |
996.0 |
5.0 |
-2.7 |
| 3 |
1539.0 |
5.0 |
1.2 |
| 3 |
2342.0 |
5.0 |
-1.3 |
| 3 |
2810.0 |
12.0 |
0.8 |
| 3 |
4140.0 |
5.0 |
-0.4 |
| 3 |
4980.0 |
10.0 |
0.6 |
| 3 |
5373.0 |
1.0 |
-2.3 |
| 3 |
12025.0 |
1.0 |
-3.2 |
| 3 |
12796.0 |
5.0 |
-0.7 |
| 3 |
14993.0 |
5.0 |
-0.6 |
| 3 |
16077.0 |
5.0 |
-1.0 |
|
Download
|
These EQ is designed by ASR member flipflop.
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -0.3dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
25.0 |
2.14 |
0.25 |
| 3 |
40.0 |
2.14 |
0.25 |
| 3 |
63.0 |
2.14 |
0.25 |
| 3 |
100.0 |
2.14 |
-0.25 |
| 3 |
160.0 |
2.14 |
-0.25 |
| 3 |
250.0 |
2.14 |
0.0 |
| 3 |
400.0 |
2.14 |
0.0 |
| 3 |
630.0 |
2.14 |
-0.25 |
| 3 |
1000.0 |
2.14 |
-0.5 |
| 3 |
1600.0 |
2.14 |
0.25 |
| 3 |
2500.0 |
2.14 |
-0.25 |
| 3 |
4000.0 |
2.14 |
-0.75 |
| 3 |
6300.0 |
2.14 |
-0.75 |
| 3 |
10000.0 |
2.14 |
-0.75 |
| 3 |
16000.0 |
2.14 |
-0.5 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -0.7dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
20.0 |
4.32 |
0.0 |
| 3 |
25.0 |
4.32 |
0.5 |
| 3 |
31.0 |
4.32 |
0.5 |
| 3 |
40.0 |
4.32 |
0.5 |
| 3 |
50.0 |
4.32 |
0.5 |
| 3 |
63.0 |
4.32 |
0.5 |
| 3 |
80.0 |
4.32 |
0.0 |
| 3 |
100.0 |
4.32 |
-0.25 |
| 3 |
125.0 |
4.32 |
-0.25 |
| 3 |
160.0 |
4.32 |
0.0 |
| 3 |
200.0 |
4.32 |
0.0 |
| 3 |
250.0 |
4.32 |
0.0 |
| 3 |
315.0 |
4.32 |
0.0 |
| 3 |
400.0 |
4.32 |
0.25 |
| 3 |
500.0 |
4.32 |
0.0 |
| 3 |
630.0 |
4.32 |
0.0 |
| 3 |
800.0 |
4.32 |
-0.25 |
| 3 |
1000.0 |
4.32 |
-0.5 |
| 3 |
1250.0 |
4.32 |
0.0 |
| 3 |
1600.0 |
4.32 |
0.25 |
| 3 |
2000.0 |
4.32 |
0.0 |
| 3 |
2500.0 |
4.32 |
-0.25 |
| 3 |
3150.0 |
4.32 |
0.0 |
| 3 |
4000.0 |
4.32 |
-0.25 |
| 3 |
5000.0 |
4.32 |
-0.25 |
| 3 |
6300.0 |
4.32 |
-0.5 |
| 3 |
8000.0 |
4.32 |
-0.25 |
| 3 |
10000.0 |
4.32 |
-0.5 |
| 3 |
12000.0 |
4.32 |
-0.5 |
| 3 |
16000.0 |
4.32 |
-0.25 |
| 3 |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
