What we know about the measurement:

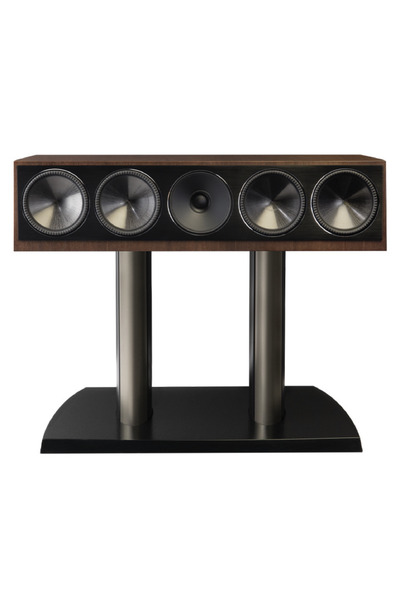

Paradigm Founder 90C is a passive center that cost around 3000 USD

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 89.7dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 52.7Hz (resp. 45.4Hz).
  • Reference level is normalised to -0.4dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 4.6dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-30.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-30.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 1.91 and would be 4.04 with a perfect subwoofer.
      • Details: NBD: ON 0.938, LW 0.729, SP 0.687, PIR 0.685; SM: SP0.592, PIR0.322; LFQ 1.395, LFX 45Hz
  • Link to original Review: eac review. Links to other reviews: yt review .
  • Vendor specifications:
    • Sensitivity 91 dB
    • Impedance 8 Ohm
    • Size
      • Width 908mm
      • Height 226mm
      • Depth 327mm
    • Weight 21.8kg
CEA2034
CEA2034 Normalized
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
;
