What we know about the measurement:

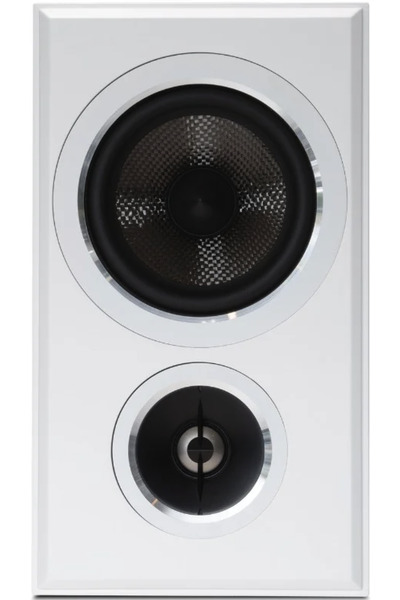

PSB Imagine B50 is a passive bookshelves that cost around 700 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 83.7dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 69.6Hz (resp. 50.5Hz).
  • Reference level is normalised to -0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.1dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-30.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.51 and would be 6.79 with a perfect subwoofer.
      • Details: NBD: ON 0.524, LW 0.466, SP 0.418, PIR 0.391; SM: SP0.857, PIR0.685; LFQ 0.439, LFX 49Hz
    • Tonality (Preference) Score is 6.14 with an EQ and would be 8.08 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.377, LW 0.316, SP 0.352, PIR 0.266; SM: SP0.932, PIR0.921; LFQ 0.459, LFX 41Hz
  • Link to original Review: eac review. Links to other reviews: yt review .
  • Vendor specifications:
    • Sensitivity 87 dB
    • Impedance 4 Ohm
    • Size
      • Width 171mm
      • Height 300mm
      • Depth 251mm
    • Weight 5.13kg
PSB Imagine B50
AutomaticEQ (IIR)
Set preamp gain to: -4.8dB.
Type Freq Q Gain
PK 41.0 0.95 2.99
PK 69.0 0.31 2.89
PK 289.0 0.27 -3.5
PK 344.0 1.06 2.96
PK 504.0 2.99 2.99
PK 1010.0 2.99 3.0
PK 14633.0 0.85 -2.23
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

PSB Imagine B50 filters_auto_eq

AutomaticEQ

PSB Imagine B50 filters_eq_full

Target v.s. EQ

PSB Imagine B50
AutomaticEQ LW (IIR)
Set preamp gain to: -2.8dB.
Type Freq Q Gain
PK 69.0 1.69 2.81
PK 155.0 2.82 -0.69
PK 487.0 3.0 3.0
PK 1010.0 3.0 3.0
PK 1586.0 0.42 -1.58
PK 4342.0 2.18 1.71
PK 12736.0 2.64 -1.18
Download

These EQ optimise for a flat listening window and is a good start for near field listening like on your desk.

PSB Imagine B50: comparison between EQs
PSB Imagine B50

Comparison betweens various EQs

PSB Imagine B50

Improvements made by EQ
CEA2034
CEA2034 Normalized
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
CEA2034
CEA2034 Normalized
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
