What we know about the measurement:

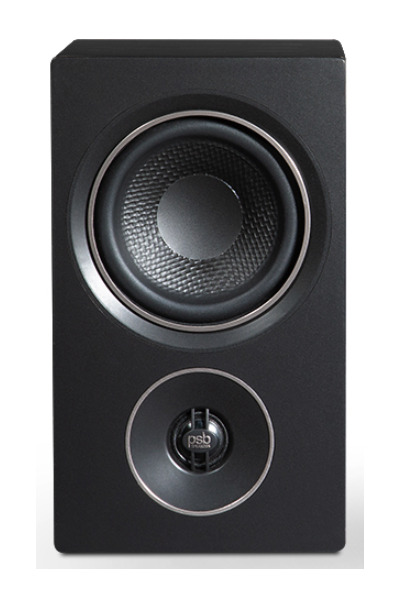

PSB Alpha P3 is a passive bookshelves that cost around 249 USD each.

  • Quality of the measurement data is high.
  • Origin of the data is ASR.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 80.6dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 63.0Hz (resp. 58.6Hz).
  • Reference level is normalised to 0.3dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 4.2dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-50.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-30.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 3.29 and would be 5.81 with a perfect subwoofer.
      • Details: NBD: ON 0.602, LW 0.514, SP 0.732, PIR 0.568; SM: SP0.752, PIR0.572; LFQ 0.162, LFX 55Hz
    • Tonality (Preference) Score is 5.34 with an EQ and would be 7.71 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.426, LW 0.359, SP 0.515, PIR 0.349; SM: SP0.915, PIR0.92; LFQ 0.162, LFX 51Hz
  • Link to Original review.
PSB Alpha P3
AutomaticEQ (IIR)
Set preamp gain to: -2.4dB.
Type Freq Q Gain
3 56.0 2.74 2.93
3 155.0 0.73 -3.31
3 689.0 0.26 2.97
3 1202.0 2.03 -5.79
3 3405.0 2.16 -5.12
3 7308.0 1.16 -2.14
3 15150.0 2.99 -3.02
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

PSB Alpha P3 filters_auto_eq

AutomaticEQ

PSB Alpha P3 filters_eq_full

Target v.s. EQ

PSB Alpha P3
Graphic EQ 15 bands
Set preamp gain to: -0.3dB.
Type Freq Q Gain
3 25.0 2.14 0.25
3 40.0 2.14 0.25
3 63.0 2.14 0.25
3 100.0 2.14 -0.25
3 160.0 2.14 -0.5
3 250.0 2.14 -0.25
3 400.0 2.14 0.0
3 630.0 2.14 0.0
3 1000.0 2.14 -0.5
3 1600.0 2.14 -0.25
3 2500.0 2.14 -0.25
3 4000.0 2.14 -0.5
3 6300.0 2.14 -0.5
3 10000.0 2.14 -0.5
3 16000.0 2.14 -0.75
Download

These EQ is designed for a 15 bands graphical EQ.

PSB Alpha P3
Graphic EQ 31 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.5
3 63.0 4.32 0.5
3 80.0 4.32 0.0
3 100.0 4.32 -0.25
3 125.0 4.32 -0.5
3 160.0 4.32 -0.25
3 200.0 4.32 -0.25
3 250.0 4.32 0.0
3 315.0 4.32 0.25
3 400.0 4.32 0.25
3 500.0 4.32 0.25
3 630.0 4.32 0.25
3 800.0 4.32 0.25
3 1000.0 4.32 0.0
3 1250.0 4.32 -0.5
3 1600.0 4.32 0.25
3 2000.0 4.32 0.0
3 2500.0 4.32 -0.25
3 3150.0 4.32 -0.5
3 4000.0 4.32 -0.25
3 5000.0 4.32 -0.25
3 6300.0 4.32 0.0
3 8000.0 4.32 -0.25
3 10000.0 4.32 0.0
3 12000.0 4.32 0.0
3 16000.0 4.32 -0.25
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

PSB Alpha P3: comparison between EQs
PSB Alpha P3

Comparison betweens various EQs

PSB Alpha P3

Improvements made by EQ

Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
