What we know about the measurement:

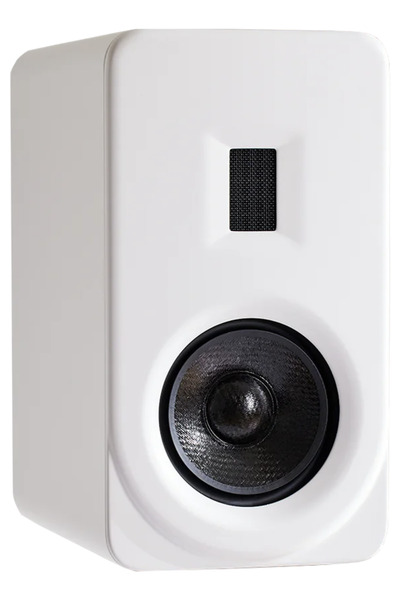

PSAudio aspen FR5 is a passive bookshelves that cost around 3500 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 81.4dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 54.2Hz (resp. 37.4Hz).
  • Reference level is normalised to -0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.0dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-50.0°, 90.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.48 and would be 6.1 with a perfect subwoofer.
      • Details: NBD: ON 0.529, LW 0.515, SP 0.53, PIR 0.509; SM: SP0.8, PIR0.543; LFQ 0.575, LFX 34Hz
    • Tonality (Preference) Score is 6.42 with an EQ and would be 7.87 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.378, LW 0.359, SP 0.334, PIR 0.294; SM: SP0.915, PIR0.869; LFQ 0.594, LFX 31Hz
  • Link to original Review: eac review. Links to other reviews: yt review .
  • Vendor specifications:
    • Sensitivity 83.5 dB
    • Impedance 5.6 Ohm
    • Size
      • Width 203.2mm
      • Height 368.3mm
      • Depth 330.2mm
    • Weight 12.1kg
PSAudio aspen FR5
AutomaticEQ (IIR)
Set preamp gain to: -2.9dB.
Type Freq Q Gain
PK 42.0 1.48 2.86
PK 579.0 0.48 2.54
PK 600.0 2.98 -4.94
PK 1083.0 2.2 -2.64
PK 1532.0 2.97 2.7
PK 1760.0 0.97 -1.31
PK 15685.0 0.49 -3.99
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.
