What we know about the measurement:

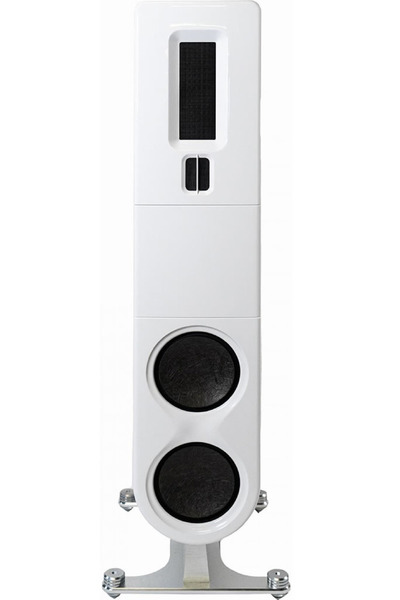

PSAudio aspen FR10 is a passive floorstanders that cost around 10000 USD for a pair.
- Quality of the measurement data is high.
- Origin of the data is ErinsAudioCorner.
- Format of the data is generated by a Klippel NFS .
- Sensitivity: 84.5dB (avg. 100Hz-1kHz for 2.83V estimated at 1m)
- -3dB (resp. -6db) point v.s. reference is at 47.6Hz (resp. 32.2Hz).
- Reference level is normalised to 0.0dB computed over the frequency range [300.0Hz, 5000.0Hz].
- Frequency deviation is 2.8dB over the same frequency range.
- Directivity
- Horizontal directivity is (-70.0°, 80.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
- Vertical directivity is (-40.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Tonality (Preference) Score is 4.18
and would be 5.49 with a
perfect subwoofer.
- Details: NBD: ON 0.729, LW 0.615, SP 0.598, PIR 0.582; SM: SP0.799, PIR0.592; LFQ 0.679, LFX 29Hz
- Tonality (Preference) Score is 5.99
with an EQ and would be 7.3 with a
perfect subwoofer and the same EQ.
- Details: NBD: ON 0.506, LW 0.436, SP 0.439, PIR 0.387; SM: SP0.919, PIR0.881; LFQ 0.679, LFX 29Hz
- Tonality (Preference) Score is 4.18
and would be 5.49 with a
perfect subwoofer.
- Link to original Review: eac review. Links to other reviews: yt review .
-
Vendor specifications:
- Sensitivity 86.5 dB
- Impedance 3.3 Ohm
- Size
- Width 298.5mm
- Height 1054.1mm
- Depth 412.8 mm)
- Weight 34.1 kg
