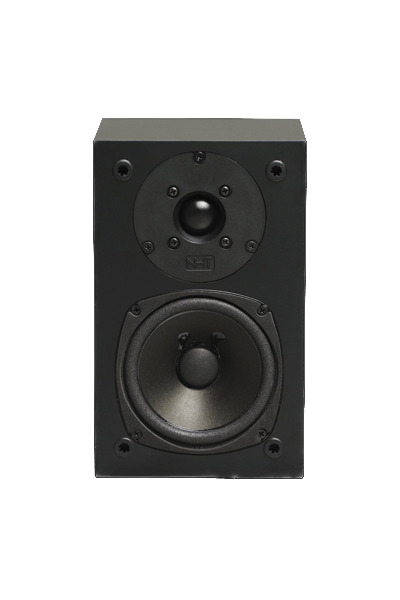

What we know about the measurement:
- Quality of the measurement data is
high.
-
Origin of the data is ASR.
-
Format of the data is
generated by a Klippel NFS
.
-
Sensitivity: 84.2dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
-
-3dB (resp. -6db) point v.s. reference is at 101.1Hz (resp. 85.0Hz).
-
Reference level is normalised to -0.4dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 3.4dB over the same frequency range.
- Directivity
-
Horizontal directivity
is (-60.0°, 60.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
-
Vertical directivity
is (-30.0°, 30.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Tonality (Preference) Score is 3.37
and would be 6.67 with a
perfect subwoofer.
- Details:
NBD: ON 0.505,
LW 0.424, SP
0.546, PIR
0.455; SM:
SP0.787,
PIR0.696; LFQ
0.563, LFX 84Hz
- Tonality (Preference) Score is 5.03
with an EQ and would be 8.1 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.385,
LW 0.295, SP
0.34, PIR
0.258; SM:
SP0.924,
PIR0.926; LFQ 0.563, LFX 74Hz
- Link to Original review.
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -2.6dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
88.0 |
1.43 |
3.0 |
| 3 |
160.0 |
1.54 |
-2.87 |
| 3 |
356.0 |
2.98 |
0.85 |
| 3 |
1887.0 |
0.38 |
-1.69 |
| 3 |
1954.0 |
3.0 |
2.97 |
| 3 |
2862.0 |
0.99 |
2.89 |
| 3 |
4342.0 |
0.9 |
-1.75 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
flipflop@ASR (IIR)
|
|
Set preamp gain to: -2.7dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
405.0 |
7.0 |
0.4 |
| 3 |
614.0 |
6.0 |
-0.5 |
| 3 |
688.0 |
20.0 |
-0.6 |
| 3 |
799.0 |
18.0 |
-1.2 |
| 3 |
910.0 |
3.5 |
-1.2 |
| 3 |
1190.0 |
15.0 |
0.7 |
| 3 |
1352.0 |
6.0 |
-1.7 |
| 3 |
1578.0 |
10.0 |
1.2 |
| 3 |
1940.0 |
9.0 |
2.4 |
| 3 |
2290.0 |
8.0 |
2.5 |
| 3 |
2495.0 |
15.0 |
-1.6 |
| 3 |
2750.0 |
15.0 |
1.1 |
| 3 |
3350.0 |
8.0 |
1.4 |
| 3 |
3735.0 |
25.0 |
-0.8 |
| 3 |
4410.0 |
15.0 |
0.9 |
| 3 |
4760.0 |
20.0 |
-0.5 |
| 3 |
5360.0 |
13.0 |
-0.8 |
| 3 |
5920.0 |
6.5 |
1.0 |
| 3 |
10800.0 |
6.0 |
-0.5 |
| 3 |
15540.0 |
2.8 |
-0.6 |
|
Download
|
These EQ is designed by ASR member flipflop.
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -0.7dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
25.0 |
2.14 |
0.5 |
| 3 |
40.0 |
2.14 |
0.5 |
| 3 |
63.0 |
2.14 |
0.5 |
| 3 |
100.0 |
2.14 |
0.5 |
| 3 |
160.0 |
2.14 |
-0.25 |
| 3 |
250.0 |
2.14 |
-0.25 |
| 3 |
400.0 |
2.14 |
0.0 |
| 3 |
630.0 |
2.14 |
0.0 |
| 3 |
1000.0 |
2.14 |
-0.25 |
| 3 |
1600.0 |
2.14 |
0.25 |
| 3 |
2500.0 |
2.14 |
0.5 |
| 3 |
4000.0 |
2.14 |
-0.25 |
| 3 |
6300.0 |
2.14 |
-0.25 |
| 3 |
10000.0 |
2.14 |
-0.25 |
| 3 |
16000.0 |
2.14 |
0.0 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -0.9dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
20.0 |
4.32 |
0.0 |
| 3 |
25.0 |
4.32 |
0.5 |
| 3 |
31.0 |
4.32 |
0.5 |
| 3 |
40.0 |
4.32 |
0.5 |
| 3 |
50.0 |
4.32 |
0.5 |
| 3 |
63.0 |
4.32 |
0.5 |
| 3 |
80.0 |
4.32 |
0.5 |
| 3 |
100.0 |
4.32 |
0.5 |
| 3 |
125.0 |
4.32 |
0.0 |
| 3 |
160.0 |
4.32 |
-0.25 |
| 3 |
200.0 |
4.32 |
-0.25 |
| 3 |
250.0 |
4.32 |
-0.25 |
| 3 |
315.0 |
4.32 |
0.0 |
| 3 |
400.0 |
4.32 |
0.0 |
| 3 |
500.0 |
4.32 |
0.0 |
| 3 |
630.0 |
4.32 |
0.0 |
| 3 |
800.0 |
4.32 |
-0.25 |
| 3 |
1000.0 |
4.32 |
-0.25 |
| 3 |
1250.0 |
4.32 |
0.0 |
| 3 |
1600.0 |
4.32 |
0.25 |
| 3 |
2000.0 |
4.32 |
0.75 |
| 3 |
2500.0 |
4.32 |
0.5 |
| 3 |
3150.0 |
4.32 |
0.25 |
| 3 |
4000.0 |
4.32 |
0.0 |
| 3 |
5000.0 |
4.32 |
-0.25 |
| 3 |
6300.0 |
4.32 |
0.0 |
| 3 |
8000.0 |
4.32 |
0.0 |
| 3 |
10000.0 |
4.32 |
0.0 |
| 3 |
12000.0 |
4.32 |
0.0 |
| 3 |
16000.0 |
4.32 |
0.25 |
| 3 |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
