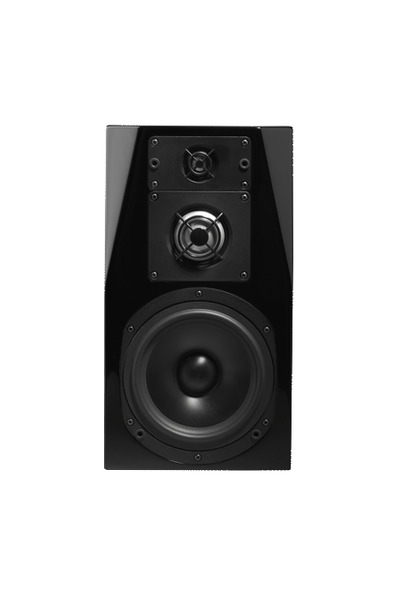

What we know about the measurement:
- Quality of the measurement data is
high.
-
Origin of the data is ASR.
-
Format of the data is
generated by a Klippel NFS
.
-
Sensitivity: 84.2dB (avg. 100Hz-1kHz for 2.83V estimated at 1m)
-
-3dB (resp. -6db) point v.s. reference is at 63.0Hz (resp. 52.7Hz).
-
Reference level is normalised to 0.1dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 2.3dB over the same frequency range.
- Directivity
-
Horizontal directivity
is (-70.0°, 70.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
-
Vertical directivity
is (-20.0°, 30.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Tonality (Preference) Score is 4.29
and would be 6.7 with a
perfect subwoofer.
- Details:
NBD: ON 0.422,
LW 0.343, SP
0.375, PIR
0.324; SM:
SP0.704,
PIR0.45; LFQ
0.729, LFX 52Hz
- Tonality (Preference) Score is 6.52
with an EQ and would be 8.6 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.287,
LW 0.234, SP
0.255, PIR
0.196; SM:
SP0.955,
PIR0.958; LFQ 0.644, LFX 43Hz
- Link to Original review.
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -2.7dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
44.0 |
1.08 |
3.0 |
| 3 |
109.0 |
1.53 |
-2.85 |
| 3 |
470.0 |
1.54 |
-2.15 |
| 3 |
739.0 |
2.75 |
1.67 |
| 3 |
1083.0 |
2.98 |
2.0 |
| 3 |
7059.0 |
1.5 |
-2.3 |
| 3 |
15685.0 |
0.96 |
-5.16 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
flipflop@ASR (IIR)
|
|
Set preamp gain to: -2.2dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
330.0 |
2.5 |
0.4 |
| 3 |
369.0 |
15.0 |
-0.7 |
| 3 |
432.0 |
10.0 |
-0.3 |
| 3 |
501.0 |
1.6 |
-1.5 |
| 3 |
730.0 |
2.8 |
1.8 |
| 3 |
815.0 |
10.0 |
0.4 |
| 3 |
1090.0 |
3.4 |
2.1 |
| 3 |
1335.0 |
9.0 |
-0.7 |
| 3 |
1559.0 |
10.0 |
1.5 |
| 3 |
1730.0 |
10.0 |
-0.8 |
| 3 |
1888.0 |
15.0 |
1.1 |
| 3 |
2095.0 |
13.0 |
-1.1 |
| 3 |
2285.0 |
16.0 |
1.2 |
| 3 |
2495.0 |
14.0 |
-1.0 |
| 3 |
2715.0 |
10.0 |
1.9 |
| 3 |
3240.0 |
14.0 |
0.5 |
| 3 |
3720.0 |
13.0 |
-1.0 |
| 6 |
4800.0 |
1.5772935127949521 |
-2.0 |
| 3 |
6660.0 |
8.0 |
-0.5 |
| 3 |
15600.0 |
2.0 |
-3.5 |
|
Download
|
These EQ is designed by ASR member flipflop.
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -0.7dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
25.0 |
2.14 |
0.5 |
| 3 |
40.0 |
2.14 |
0.5 |
| 3 |
63.0 |
2.14 |
0.5 |
| 3 |
100.0 |
2.14 |
-0.5 |
| 3 |
160.0 |
2.14 |
-0.25 |
| 3 |
250.0 |
2.14 |
0.0 |
| 3 |
400.0 |
2.14 |
-0.25 |
| 3 |
630.0 |
2.14 |
0.0 |
| 3 |
1000.0 |
2.14 |
0.5 |
| 3 |
1600.0 |
2.14 |
0.25 |
| 3 |
2500.0 |
2.14 |
0.25 |
| 3 |
4000.0 |
2.14 |
0.0 |
| 3 |
6300.0 |
2.14 |
-0.25 |
| 3 |
10000.0 |
2.14 |
-0.25 |
| 3 |
16000.0 |
2.14 |
-0.75 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -0.4dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
20.0 |
4.32 |
0.0 |
| 3 |
25.0 |
4.32 |
0.25 |
| 3 |
31.0 |
4.32 |
0.25 |
| 3 |
40.0 |
4.32 |
0.25 |
| 3 |
50.0 |
4.32 |
0.25 |
| 3 |
63.0 |
4.32 |
0.25 |
| 3 |
80.0 |
4.32 |
0.0 |
| 3 |
100.0 |
4.32 |
-0.25 |
| 3 |
125.0 |
4.32 |
-0.25 |
| 3 |
160.0 |
4.32 |
-0.25 |
| 3 |
200.0 |
4.32 |
-0.25 |
| 3 |
250.0 |
4.32 |
-0.25 |
| 3 |
315.0 |
4.32 |
-0.25 |
| 3 |
400.0 |
4.32 |
-0.25 |
| 3 |
500.0 |
4.32 |
-0.25 |
| 3 |
630.0 |
4.32 |
0.0 |
| 3 |
800.0 |
4.32 |
0.25 |
| 3 |
1000.0 |
4.32 |
0.25 |
| 3 |
1250.0 |
4.32 |
0.0 |
| 3 |
1600.0 |
4.32 |
0.0 |
| 3 |
2000.0 |
4.32 |
-0.25 |
| 3 |
2500.0 |
4.32 |
-0.25 |
| 3 |
3150.0 |
4.32 |
-0.25 |
| 3 |
4000.0 |
4.32 |
-0.25 |
| 3 |
5000.0 |
4.32 |
-0.25 |
| 3 |
6300.0 |
4.32 |
-0.5 |
| 3 |
8000.0 |
4.32 |
-0.5 |
| 3 |
10000.0 |
4.32 |
-0.5 |
| 3 |
12000.0 |
4.32 |
-0.5 |
| 3 |
16000.0 |
4.32 |
-0.75 |
| 3 |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
