What we know about the measurement:

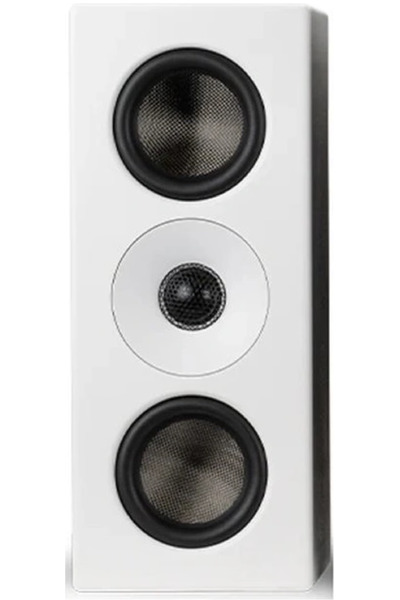

Moondrop M4P is a passive bookshelves that cost around 900 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • -3dB (resp. -6db) point v.s. reference is at 69.6Hz (resp. 58.6Hz).
  • Reference level is normalised to 0.0dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.1dB over the same frequency range.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.91 and would be 7.46 with a perfect subwoofer.
      • Details: NBD: ON 0.359, LW 0.3, SP 0.402, PIR 0.305; SM: SP0.883, PIR0.682; LFQ 0.472, LFX 56Hz
    • Tonality (Preference) Score is 6.46 with an EQ and would be 8.53 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.29, LW 0.232, SP 0.321, PIR 0.225; SM: SP0.979, PIR0.969; LFQ 0.468, LFX 43Hz
  • Link to original Review: eac review. Links to other reviews: yt review .
  • Vendor specifications:
    • Sensitivity 85 dB
    • Impedance 4 Ohm
    • Size
      • Width 155mm
      • Height 380mm
      • Depth 185mm
    • Weight 6.2kg
Moondrop M4P
AutomaticEQ (IIR)
Set preamp gain to: -3.0dB.
Type Freq Q Gain
PK 44.0 2.24 2.98
PK 235.0 2.07 1.24
PK 332.0 2.96 1.1
PK 820.0 2.87 -1.52
PK 1480.0 0.84 2.8
PK 1642.0 2.75 -2.39
PK 4989.0 0.41 -2.69
Download
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
Improvement made by adding the above EQ
EQ
AutoEQ
Target v.s. EQ
Target v.s. EQ
Histogram of errors
On Axis (fullrange)
Listening Window (fullrange)
Predicted In-Room Response (fullrange)
;
