What we know about the measurement:

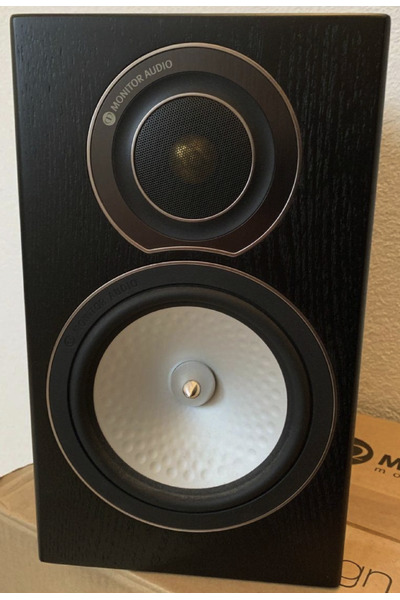

Monitor Audio Silver RX1 is a passive bookshelves that cost around 675 USD for a pair.

  • Quality of the measurement data is low.
  • Origin of the data is Misc.
  • Format of the data is a set of 36 horizontal and 36 vertical measurements .
  • -3dB (resp. -6db) point v.s. reference is at 64.4Hz (resp. 56.6Hz).
  • Reference level is normalised to -0.2dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.4dB over the same frequency range.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 5.7 and would be 8.17 with a perfect subwoofer.
      • Details: NBD: ON 0.337, LW 0.279, SP 0.334, PIR 0.269; SM: SP0.937, PIR0.919; LFQ 0.26, LFX 54Hz
    • Tonality (Preference) Score is 6.32 with an EQ and would be 8.52 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.256, LW 0.197, SP 0.272, PIR 0.196; SM: SP0.908, PIR0.889; LFQ 0.316, LFX 46Hz
  • Link to original Review: asr review. Links to other reviews: sav review , whf review .
  • Vendor specifications:
    • Sensitivity 89 dB
    • Impedance 6 Ohm
    • SPL
      • peak: 111.8 dB
    • Size
      • Width 185mm
      • Height 312mm
      • Depth 240mm
    • Weight 6.8kg
Monitor Audio Silver RX1
AutomaticEQ (IIR)
Set preamp gain to: -3.9dB.
Type Freq Q Gain
PK 47.0 1.03 3.0
PK 92.0 1.85 -3.43
PK 95.0 0.44 3.0
PK 130.0 0.98 -4.79
PK 369.0 2.99 0.47
PK 820.0 1.21 -1.21
Download
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
Improvement made by adding the above EQ
EQ
AutoEQ
Target v.s. EQ
Target v.s. EQ
Histogram of errors
On Axis (fullrange)
Listening Window (fullrange)
Predicted In-Room Response (fullrange)
;
