What we know about the measurement:

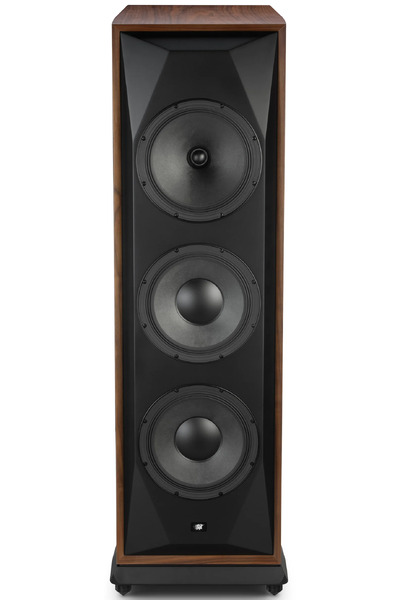

MoFi SourcePoint V10 Master Edition is a passive floorstanders that cost around 8000 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • -3dB (resp. -6db) point v.s. reference is at 37.4Hz (resp. 31.5Hz).
  • Reference level is normalised to -0.2dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 4.9dB over the same frequency range.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.81 and would be 6.12 with a perfect subwoofer.
      • Details: NBD: ON 0.622, LW 0.493, SP 0.459, PIR 0.452; SM: SP0.822, PIR0.58; LFQ 1.6, LFX 29Hz
    • Tonality (Preference) Score is 6.84 with an EQ and would be 7.68 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.476, LW 0.365, SP 0.335, PIR 0.297; SM: SP0.958, PIR0.895; LFQ 1.6, LFX 22Hz
  • Link to original Review: yt review. .
  • Vendor specifications:
    • Sensitivity 91.0 dB
    • Impedance 4.5 Ohm
    • Size
      • Width 393.0mm
      • Height 1240.0mm
      • Depth 505.0mm
    • Weight 72.6kg
MoFi SourcePoint V10 Master Edition
AutomaticEQ (IIR)
Set preamp gain to: -2.4dB.
Type Freq Q Gain
PK 38.0 0.26 3.0
PK 109.0 0.7 -4.03
PK 310.0 1.09 2.95
PK 369.0 2.82 -3.68
PK 879.0 1.24 -3.04
PK 942.0 0.26 1.46
PK 8110.0 0.92 -2.78
Download
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
Improvement made by adding the above EQ
EQ
AutoEQ
Target v.s. EQ
Target v.s. EQ
Histogram of errors
On Axis (fullrange)
Listening Window (fullrange)
Predicted In-Room Response (fullrange)
;
