What we know about the measurement:

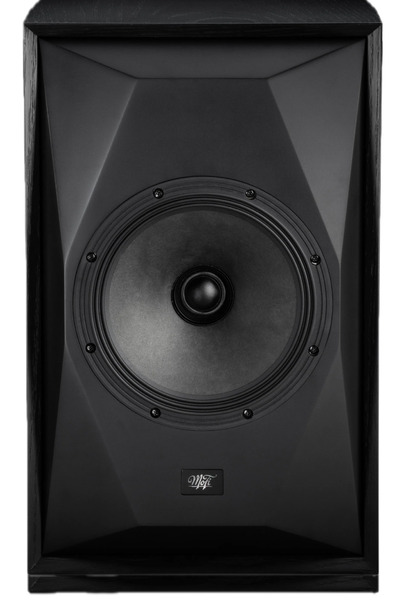

MoFi SourcePoint 8 is a passive bookshelves that cost around 2750 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • -3dB (resp. -6db) point v.s. reference is at 52.7Hz (resp. 49.1Hz).
  • Reference level is normalised to 0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.4dB over the same frequency range.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 5.03 and would be 7.17 with a perfect subwoofer.
      • Details: NBD: ON 0.551, LW 0.395, SP 0.358, PIR 0.339; SM: SP0.933, PIR0.809; LFQ 0.899, LFX 45Hz
    • Tonality (Preference) Score is 5.77 with an EQ and would be 7.78 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.493, LW 0.343, SP 0.319, PIR 0.291; SM: SP0.976, PIR0.946; LFQ 0.899, LFX 42Hz
  • Link to original Review: eac review. Links to other reviews: yt review .
  • Vendor specifications:
    • Sensitivity 87 dB
    • Impedance 6.4 Ohm
    • Size
      • Width 290mm
      • Height 456mm
      • Depth 335mm
    • Weight 12.7kg
MoFi SourcePoint 8
AutomaticEQ (IIR)
Set preamp gain to: -2.3dB.
Type Freq Q Gain
PK 30.0 0.45 2.26
PK 454.0 3.0 1.46
PK 4051.0 3.0 2.98
PK 4818.0 2.97 -3.62
PK 5347.0 1.92 2.98
PK 5536.0 0.63 -2.22
PK 16239.0 1.12 -1.42
Download
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
Improvement made by adding the above EQ
EQ
AutoEQ
Target v.s. EQ
Target v.s. EQ
Histogram of errors
On Axis (fullrange)
Listening Window (fullrange)
Predicted In-Room Response (fullrange)
;
