- Quality of the measurement data is high.
- Origin of the data is ErinsAudioCorner.
- Format of the data is generated by a Klippel NFS .
-
Sensitivity:
- Company: 91 dB
- Measured: 88.3 dB (avg. 300Hz-3kHz for 2.83V measured at 1m).
- -3dB (resp. -6db) point v.s. reference is at 58.6Hz (resp. 46.9Hz).
- Reference level is normalised to -0.0dB computed over the frequency range [300.0Hz, 5000.0Hz].
- Frequency deviation is 4.6dB over the same frequency range.
- Tonality (Preference) Score
- Tonality (Preference) Score is 2.96
and would be 4.97 with a
perfect subwoofer.
- Details: NBD: ON 0.669, LW 0.497, SP 0.457, PIR 0.446; SM: SP0.61, PIR0.125; LFQ 1.221, LFX 42Hz
- Tonality (Preference) Score is 5.62
with an EQ and would be 7.35 with a
perfect subwoofer and the same EQ.
- Details: NBD: ON 0.557, LW 0.416, SP 0.407, PIR 0.368; SM: SP0.96, PIR0.93; LFQ 1.221, LFX 36Hz
- Tonality (Preference) Score is 2.96
and would be 4.97 with a
perfect subwoofer.
- Link to original Review: eac review. Links to other reviews: yt review .

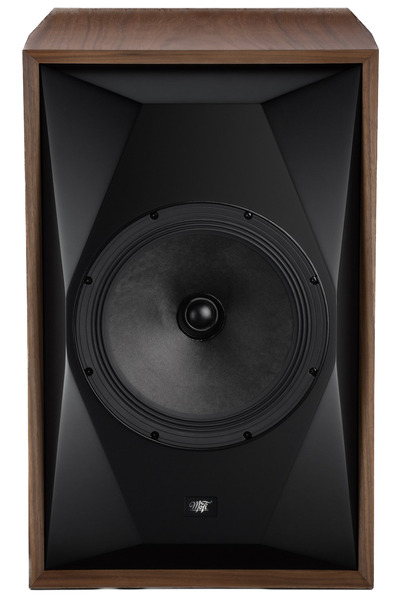

MoFi SourcePoint 10 is a passive bookshelves that cost around 3700 USD for a pair.
Vendor specifications
- Impedance 6.4 Ohm
- Size
- Width 368mm
- Height 572mm
- Depth 422mm
- Weight 21kg
Directivity (-6dB)
| AutomaticEQ (IIR) | |||
| Set preamp gain to: -2.9dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 41.0 | 1.56 | 2.86 |
| PK | 144.0 | 1.63 | 0.88 |
| PK | 560.0 | 2.95 | 1.52 |
| PK | 3650.0 | 2.95 | -1.2 |
| PK | 5732.0 | 2.97 | -2.8 |
| PK | 8397.0 | 2.77 | -2.0 |
| PK | 16239.0 | 0.53 | -5.3 |
| Download | |||
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
| Graphic EQ 15 bands | |||
| Set preamp gain to: -0.6dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 25.0 | 2.14 | 0.5 |
| PK | 40.0 | 2.14 | 0.5 |
| PK | 63.0 | 2.14 | 0.25 |
| PK | 100.0 | 2.14 | 0.0 |
| PK | 160.0 | 2.14 | 0.0 |
| PK | 250.0 | 2.14 | -0.25 |
| PK | 400.0 | 2.14 | -0.25 |
| PK | 630.0 | 2.14 | 0.0 |
| PK | 1000.0 | 2.14 | -0.25 |
| PK | 1600.0 | 2.14 | 0.0 |
| PK | 2500.0 | 2.14 | -0.25 |
| PK | 4000.0 | 2.14 | -0.25 |
| PK | 6300.0 | 2.14 | -0.75 |
| PK | 10000.0 | 2.14 | -0.75 |
| PK | 16000.0 | 2.14 | -1.0 |
| Download | |||
This EQ is designed for a 15 bands graphical EQ.
| Graphic EQ 31 bands | |||
| Set preamp gain to: -0.4dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 20.0 | 4.32 | 0.0 |
| PK | 25.0 | 4.32 | 0.25 |
| PK | 31.0 | 4.32 | 0.25 |
| PK | 40.0 | 4.32 | 0.25 |
| PK | 50.0 | 4.32 | 0.25 |
| PK | 63.0 | 4.32 | 0.25 |
| PK | 80.0 | 4.32 | 0.0 |
| PK | 100.0 | 4.32 | 0.0 |
| PK | 125.0 | 4.32 | 0.0 |
| PK | 160.0 | 4.32 | 0.0 |
| PK | 200.0 | 4.32 | 0.0 |
| PK | 250.0 | 4.32 | -0.25 |
| PK | 315.0 | 4.32 | 0.0 |
| PK | 400.0 | 4.32 | 0.0 |
| PK | 500.0 | 4.32 | 0.0 |
| PK | 630.0 | 4.32 | 0.0 |
| PK | 800.0 | 4.32 | -0.25 |
| PK | 1000.0 | 4.32 | 0.0 |
| PK | 1250.0 | 4.32 | 0.0 |
| PK | 1600.0 | 4.32 | 0.0 |
| PK | 2000.0 | 4.32 | 0.0 |
| PK | 2500.0 | 4.32 | -0.25 |
| PK | 3150.0 | 4.32 | -0.25 |
| PK | 4000.0 | 4.32 | -0.25 |
| PK | 5000.0 | 4.32 | -0.5 |
| PK | 6300.0 | 4.32 | -0.5 |
| PK | 8000.0 | 4.32 | -0.75 |
| PK | 10000.0 | 4.32 | -0.75 |
| PK | 12000.0 | 4.32 | -0.75 |
| PK | 16000.0 | 4.32 | -0.75 |
| PK | 20000.0 | 4.32 | 0.0 |
| Download | |||
