What we know about the measurement:

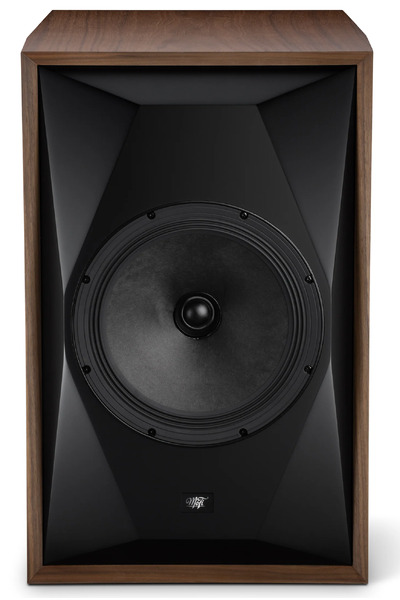

MoFi SourcePoint 10 Master Edition is a passive bookshelves that cost around 1900 USD each.

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • -3dB (resp. -6db) point v.s. reference is at 56.4Hz (resp. 47.6Hz).
  • Reference level is normalised to -0.2dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.6dB over the same frequency range.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.82 and would be 6.83 with a perfect subwoofer.
      • Details: NBD: ON 0.576, LW 0.431, SP 0.459, PIR 0.42; SM: SP0.91, PIR0.796; LFQ 1.187, LFX 42Hz
    • Tonality (Preference) Score is 5.88 with an EQ and would be 7.82 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.472, LW 0.323, SP 0.334, PIR 0.289; SM: SP0.965, PIR0.942; LFQ 1.187, LFX 41Hz
  • Link to original Review: yt review. .
  • Vendor specifications:
    • Sensitivity 91.0 dB
    • Impedance 6.2 Ohm
    • Size
      • Width 368.0mm
      • Height 572.0mm
      • Depth 406.0mm
    • Weight 21.0kg
MoFi SourcePoint 10 Master Edition
AutomaticEQ (IIR)
Set preamp gain to: -2.5dB.
Type Freq Q Gain
PK 56.0 2.98 2.4
PK 310.0 2.99 2.04
PK 344.0 2.72 -3.71
PK 470.0 0.41 1.93
PK 765.0 2.79 -2.54
PK 2579.0 2.0 -1.73
PK 7834.0 1.47 -0.94
Download
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
Improvement made by adding the above EQ
EQ
AutoEQ
Target v.s. EQ
Target v.s. EQ
Histogram of errors
On Axis (fullrange)
Listening Window (fullrange)
Predicted In-Room Response (fullrange)
;
