What we know about the measurement:

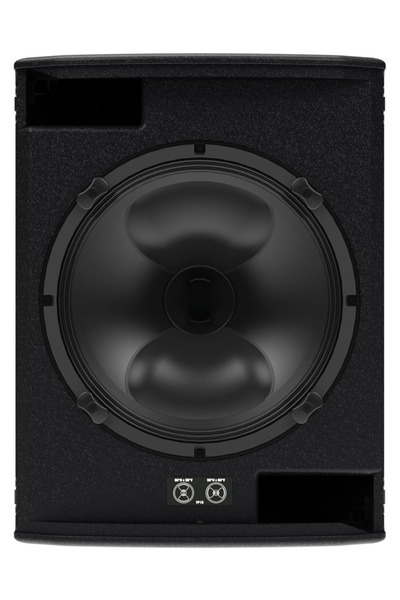

Martin Audio Flexpoint FP15 is a passive liveportable that cost around 3000 USD each.

  • Quality of the measurement data is unknown.
  • Origin of the data is Martin Audio.
  • Format of the data is a GLL file .
  • Sensitivity:
    • Sensitivity: 99.2dB (avg. 100Hz-1kHz for 2.83V estimated at 1m).
    • Sensitivity: 79.2dB computed at the measurement distance (10.0m) over the same frequency range.
  • -3dB (resp. -6db) point v.s. reference is at 53.0Hz (resp. 47.5Hz).
  • Reference level is normalised to -0.2dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 10.1dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-40.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-30.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 0.8 and would be 3.02 with a perfect subwoofer.
      • Details: NBD: ON 1.105, LW 1.111, SP 1.089, PIR 1.043; SM: SP0.714, PIR0.523; LFQ 1.778, LFX 47Hz
  • Note: data looks valid between 125Hz and 12kHz maybe 16kHz..
  • Vendor specifications:
    • Dispersion: 80° horizontal and 50° vertical.
    • Sensitivity 99 dB
    • Impedance 8 Ohm
    • SPL
      • continuous: 126 dB
      • peak: 132 dB
    • Size
      • Width 460mm
      • Height 601mm
      • Depth 420 mm)
    • Weight 27.4 kg
;
