What we know about the measurement:

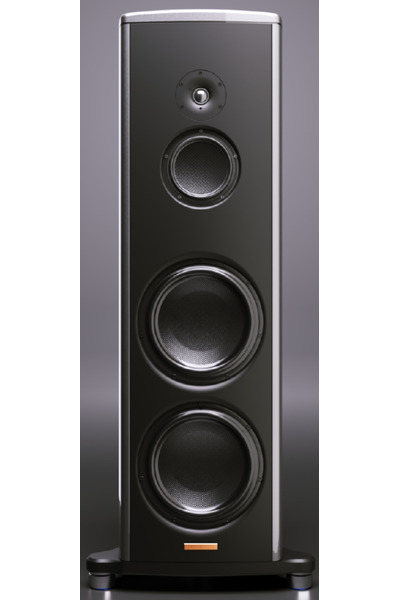

Magico S5 2024 is a passive floorstanders that cost around 74500 USD for a pair.

  • Quality of the measurement data is medium.
  • Origin of the data is Magico.
  • Format of the data is a scanned image .
  • Sensitivity: 85.9dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 37.0Hz (resp. 27.9Hz).
  • Reference level is normalised to 0.4dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 1.3dB over the same frequency range.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 7.36 and would be 8.53 with a perfect subwoofer.
      • Details: NBD: ON 0.243, LW 0.185, SP 0.236, PIR 0.178; SM: SP0.898, PIR0.858; LFQ 1.732, LFX 27Hz
    • Tonality (Preference) Score is 8.09 with an EQ and would be 8.77 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.213, LW 0.137, SP 0.224, PIR 0.154; SM: SP0.914, PIR0.9; LFQ 1.732, LFX 20Hz
  • Link to original Review: tas review. .
  • Note: data is from a Klippel NFS smoothed at 1/9th octave.
  • Vendor specifications:
    • Sensitivity 88 dB
    • Impedance 4 Ohm
    • Size
      • Width 485mm
      • Height 1220mm
      • Depth 490 mm)
    • Weight 118 kg
Magico S5 2024
AutomaticEQ (IIR)
Set preamp gain to: -3.0dB.
Type Freq Q Gain
3 21.0 0.96 2.73
3 47.0 0.59 0.6
3 219.0 1.16 -0.31
3 332.0 2.83 0.67
3 409.0 2.88 -1.24
3 579.0 2.99 -0.77
3 1429.0 2.34 -1.05
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Magico S5 2024 filters_auto_eq

AutomaticEQ

Magico S5 2024 filters_eq_full

Target v.s. EQ
CEA2034
On Axis
Estimated In-Room Response
CEA2034
On Axis
Estimated In-Room Response
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
