What we know about the measurement:

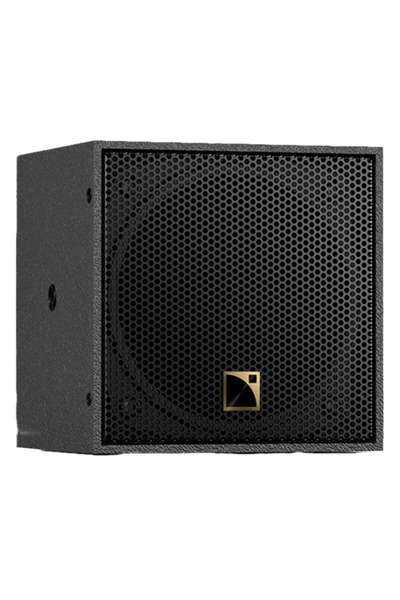

L-Acoustics X4i is a passive liveportable

  • Quality of the measurement data is medium.
  • Origin of the data is L-Acoustics.
  • Format of the data is a GLL file .
  • Sensitivity:
    • Sensitivity: 79.2dB (avg. 100Hz-1kHz for 2.83V estimated at 1m).
    • Sensitivity: 59.2dB computed at the measurement distance (10.0m) over the same frequency range.
  • -3dB (resp. -6db) point v.s. reference is at 190.0Hz (resp. 150.0Hz).
  • Reference level is normalised to 0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 0.8dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 0.92 and would be 5.29 with a perfect subwoofer.
      • Details: NBD: ON 0.366, LW 0.377, SP 0.604, PIR 0.502; SM: SP0.161, PIR0.012; LFQ 0.588, LFX 150Hz
  • Vendor specifications:
    • Dispersion: 110° horizontal and 110° vertical.
    • Impedance 16 Ohm
    • SPL
      • peak: 116 dB
    • Size
      • Width 116mm
      • Height 116mm
      • Depth 99 mm)
    • Weight 1.0 kg
CEA2034
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
;
