What we know about the measurement:

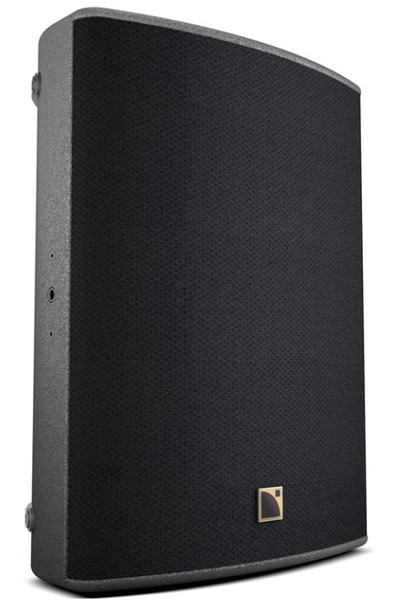

L-Acoustics X15 HiQ is a passive liveportable

  • Quality of the measurement data is medium.
  • Origin of the data is L-Acoustics.
  • Format of the data is a GLL file .
  • Sensitivity:
    • Sensitivity: 103.4dB (avg. 100Hz-1kHz for 2.83V estimated at 1m).
    • Sensitivity: 83.4dB computed at the measurement distance (10.0m) over the same frequency range.
  • -3dB (resp. -6db) point v.s. reference is at 73.0Hz (resp. 63.0Hz).
  • Reference level is normalised to 0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 0.9dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-30.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-30.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 5.63 and would be 8.38 with a perfect subwoofer.
      • Details: NBD: ON 0.171, LW 0.186, SP 0.374, PIR 0.274; SM: SP0.899, PIR0.839; LFQ 2.025, LFX 63Hz
    • Tonality (Preference) Score is 6.58 with an EQ and would be 9.11 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.093, LW 0.097, SP 0.278, PIR 0.176; SM: SP0.957, PIR0.942; LFQ 2.025, LFX 56Hz
L-Acoustics X15 HiQ
AutomaticEQ (IIR)
Set preamp gain to: -2.6dB.
Type Freq Q Gain
3 65.0 1.53 2.96
3 98.0 2.71 -2.02
3 155.0 2.65 -1.46
3 504.0 2.98 1.01
3 3177.0 2.96 -0.94
3 5536.0 1.51 -1.55
3 9648.0 3.0 -2.4
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

L-Acoustics X15 HiQ filters_auto_eq

AutomaticEQ

L-Acoustics X15 HiQ filters_eq_full

Target v.s. EQ

L-Acoustics X15 HiQ
Graphic EQ 15 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 25.0 2.14 0.5
3 40.0 2.14 0.5
3 63.0 2.14 0.5
3 100.0 2.14 0.0
3 160.0 2.14 -0.25
3 250.0 2.14 0.0
3 400.0 2.14 0.25
3 630.0 2.14 0.25
3 1000.0 2.14 0.25
3 1600.0 2.14 0.25
3 2500.0 2.14 0.25
3 4000.0 2.14 0.25
3 6300.0 2.14 0.25
3 10000.0 2.14 0.0
3 16000.0 2.14 0.5
Download

These EQ is designed for a 15 bands graphical EQ.

L-Acoustics X15 HiQ
Graphic EQ 31 bands
Set preamp gain to: -0.8dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.5
3 63.0 4.32 0.5
3 80.0 4.32 0.25
3 100.0 4.32 0.0
3 125.0 4.32 0.0
3 160.0 4.32 0.0
3 200.0 4.32 0.0
3 250.0 4.32 0.0
3 315.0 4.32 0.25
3 400.0 4.32 0.25
3 500.0 4.32 0.5
3 630.0 4.32 0.5
3 800.0 4.32 0.25
3 1000.0 4.32 0.5
3 1250.0 4.32 0.5
3 1600.0 4.32 0.5
3 2000.0 4.32 0.5
3 2500.0 4.32 0.25
3 3150.0 4.32 0.25
3 4000.0 4.32 0.25
3 5000.0 4.32 0.25
3 6300.0 4.32 0.25
3 8000.0 4.32 0.25
3 10000.0 4.32 0.25
3 12000.0 4.32 0.5
3 16000.0 4.32 0.5
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

L-Acoustics X15 HiQ: comparison between EQs
L-Acoustics X15 HiQ

Comparison betweens various EQs

L-Acoustics X15 HiQ

Improvements made by EQ
