What we know about the measurement:

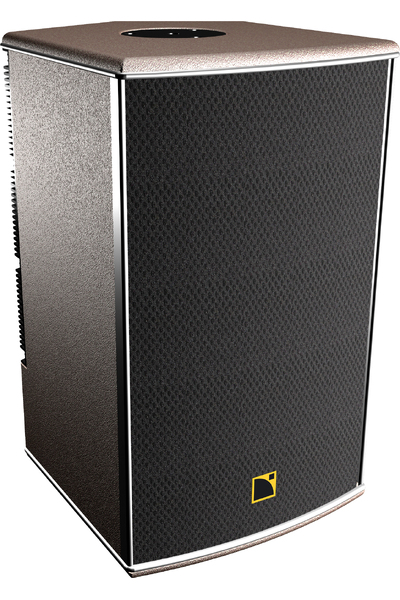

L-Acoustics 108P is an active liveportable that cost around 7400 USD for a pair.

  • Quality of the measurement data is medium.
  • Origin of the data is L-Acoustics.
  • Format of the data is a GLL file .
  • -3dB (resp. -6db) point v.s. reference is at 71.0Hz (resp. 61.5Hz).
  • Reference level is normalised to 0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 1.4dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.68 and would be 7.38 with a perfect subwoofer.
      • Details: NBD: ON 0.346, LW 0.383, SP 0.483, PIR 0.41; SM: SP0.885, PIR0.771; LFQ 0.964, LFX 61Hz
    • Tonality (Preference) Score is 6.02 with an EQ and would be 8.55 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.205, LW 0.195, SP 0.361, PIR 0.266; SM: SP0.968, PIR0.938; LFQ 0.964, LFX 56Hz
L-Acoustics 108P
AutomaticEQ (IIR)
Set preamp gain to: -2.9dB.
Type Freq Q Gain
5 71.0 1.06 2.93
3 309.0 2.4 2.56
3 404.0 0.59 -1.74
3 529.0 2.75 2.98
3 933.0 2.71 1.24
3 1594.0 2.79 1.34
3 3555.0 1.53 -0.56
3 6069.0 2.91 -2.28
6 11454.0 0.7 -1.91
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

L-Acoustics 108P filters_auto_eq

AutomaticEQ

L-Acoustics 108P filters_eq_full

Target v.s. EQ

L-Acoustics 108P
Graphic EQ 15 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 25.0 2.14 0.5
3 40.0 2.14 0.5
3 63.0 2.14 0.5
3 100.0 2.14 0.0
3 160.0 2.14 0.0
3 250.0 2.14 0.0
3 400.0 2.14 0.0
3 630.0 2.14 0.25
3 1000.0 2.14 0.25
3 1600.0 2.14 0.25
3 2500.0 2.14 0.0
3 4000.0 2.14 0.0
3 6300.0 2.14 -0.25
3 10000.0 2.14 -0.25
3 16000.0 2.14 0.25
Download

These EQ is designed for a 15 bands graphical EQ.

L-Acoustics 108P
Graphic EQ 31 bands
Set preamp gain to: -0.8dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.5
3 63.0 4.32 0.5
3 80.0 4.32 0.25
3 100.0 4.32 0.0
3 125.0 4.32 0.0
3 160.0 4.32 0.0
3 200.0 4.32 0.0
3 250.0 4.32 0.0
3 315.0 4.32 0.25
3 400.0 4.32 0.25
3 500.0 4.32 0.5
3 630.0 4.32 0.25
3 800.0 4.32 0.25
3 1000.0 4.32 0.25
3 1250.0 4.32 0.0
3 1600.0 4.32 0.5
3 2000.0 4.32 0.25
3 2500.0 4.32 0.25
3 3150.0 4.32 0.0
3 4000.0 4.32 0.25
3 5000.0 4.32 0.25
3 6300.0 4.32 0.0
3 8000.0 4.32 0.5
3 10000.0 4.32 0.0
3 12000.0 4.32 0.25
3 16000.0 4.32 0.5
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

L-Acoustics 108P: comparison between EQs
L-Acoustics 108P

Comparison betweens various EQs

L-Acoustics 108P

Improvements made by EQ
