Measurements for speaker Klipsch RP-600M II

Data

& EQ

Data & EQ
Ref.

Graphs

Reference graphs
EQed

Graphs

EQed graphs
Ref.

v.s. EQ

Reference v.s. EQed

What we know about the measurement:

Klipsch RP-600M II is a passive bookshelves that cost around 670 USD for a pair.

Quality of the measurement data is high.
Origin of the data is ErinsAudioCorner.
Format of the data is generated by a Klippel NFS .
Sensitivity: 84.9dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
-3dB (resp. -6db) point v.s. reference is at 74.7Hz (resp. 54.2Hz).
Reference level is normalised to 0.4dB computed over the frequency range [300.0Hz, 5000.0Hz].
Frequency deviation is 2.8dB over the same frequency range.
Directivity
- Horizontal directivity is (-40.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
- Vertical directivity is (-20.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
Tonality (Preference) Score
- Tonality (Preference) Score is 5.23 and would be 7.37 with a perfect subwoofer.
  - Details: NBD: ON 0.347, LW 0.324, SP 0.338, PIR 0.277; SM: SP0.909, PIR0.598; LFQ 0.648, LFX 45Hz
- Tonality (Preference) Score is 6.74 with an EQ and would be 8.62 with a perfect subwoofer and the same EQ.
  - Details: NBD: ON 0.241, LW 0.229, SP 0.302, PIR 0.23; SM: SP0.976, PIR0.962; LFQ 0.648, LFX 39Hz
Link to Original review.
Note: This measurement is without a grille.

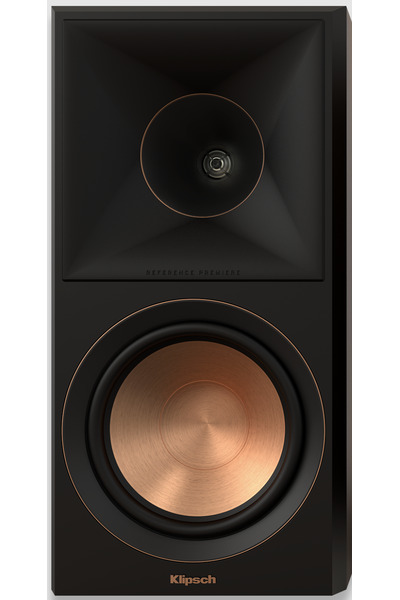

Klipsch RP-600M II

Type	Freq	Q	Gain
AutomaticEQ (IIR)
Set preamp gain to: -2.8dB.
3	42.0	0.59	2.87
3	113.0	1.47	-1.34
3	289.0	0.75	2.2
3	792.0	2.96	-0.86
3	1642.0	2.98	-1.56
3	3779.0	1.26	-2.14
3	12736.0	1.09	-3.57
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Klipsch RP-600M II filters_auto_eq

AutomaticEQ

Klipsch RP-600M II filters_eq_full

Target v.s. EQ

Klipsch RP-600M II

Type	Freq	Q	Gain
Graphic EQ 15 bands
Set preamp gain to: -0.7dB.
3	25.0	2.14	0.5
3	40.0	2.14	0.5
3	63.0	2.14	0.5
3	100.0	2.14	0.0
3	160.0	2.14	0.25
3	250.0	2.14	0.5
3	400.0	2.14	0.25
3	630.0	2.14	0.0
3	1000.0	2.14	0.25
3	1600.0	2.14	-0.25
3	2500.0	2.14	0.0
3	4000.0	2.14	-0.25
3	6300.0	2.14	0.0
3	10000.0	2.14	-0.25
3	16000.0	2.14	0.25
Download

These EQ is designed for a 15 bands graphical EQ.

Klipsch RP-600M II

Type	Freq	Q	Gain
Graphic EQ 31 bands
Set preamp gain to: -0.4dB.
3	20.0	4.32	0.0
3	25.0	4.32	0.25
3	31.0	4.32	0.25
3	40.0	4.32	0.25
3	50.0	4.32	0.25
3	63.0	4.32	0.25
3	80.0	4.32	0.25
3	100.0	4.32	0.0
3	125.0	4.32	0.0
3	160.0	4.32	0.0
3	200.0	4.32	0.0
3	250.0	4.32	0.25
3	315.0	4.32	0.25
3	400.0	4.32	0.25
3	500.0	4.32	0.0
3	630.0	4.32	0.0
3	800.0	4.32	-0.25
3	1000.0	4.32	0.0
3	1250.0	4.32	0.0
3	1600.0	4.32	-0.25
3	2000.0	4.32	-0.25
3	2500.0	4.32	-0.25
3	3150.0	4.32	-0.5
3	4000.0	4.32	-0.5
3	5000.0	4.32	-0.5
3	6300.0	4.32	-0.25
3	8000.0	4.32	-0.25
3	10000.0	4.32	-0.5
3	12000.0	4.32	-0.75
3	16000.0	4.32	-0.25
3	20000.0	4.32	0.0
Download

These EQ is designed for a 31 bands graphical EQ.

Klipsch RP-600M II: comparison between EQs

Klipsch RP-600M II

Comparison betweens various EQs

Klipsch RP-600M II

Improvements made by EQ
