- Quality of the measurement data is high.
- Origin of the data is ErinsAudioCorner.
- Format of the data is generated by a Klippel NFS .
-
Sensitivity:
- Measured: 83.3 dB (avg. 300Hz-3kHz for 2.83V measured at 1m).
- -3dB (resp. -6db) point v.s. reference is at 85.7Hz (resp. 71.8Hz).
- Reference level is normalised to 0.3dB computed over the frequency range [300.0Hz, 5000.0Hz].
- Frequency deviation is 4.2dB over the same frequency range.
- Tonality (Preference) Score
- Tonality (Preference) Score is 2.85
and would be 5.79 with a
perfect subwoofer.
- Details: NBD: ON 0.576, LW 0.527, SP 0.509, PIR 0.492; SM: SP0.767, PIR0.438; LFQ 0.252, LFX 69Hz
- Tonality (Preference) Score is 5.17
with an EQ and would be 7.9 with a
perfect subwoofer and the same EQ.
- Details: NBD: ON 0.342, LW 0.285, SP 0.305, PIR 0.259; SM: SP0.92, PIR0.795; LFQ 0.339, LFX 62Hz
- Tonality (Preference) Score is 2.85
and would be 5.79 with a
perfect subwoofer.
- Link to original Review: eac review. Links to other reviews: yt review .

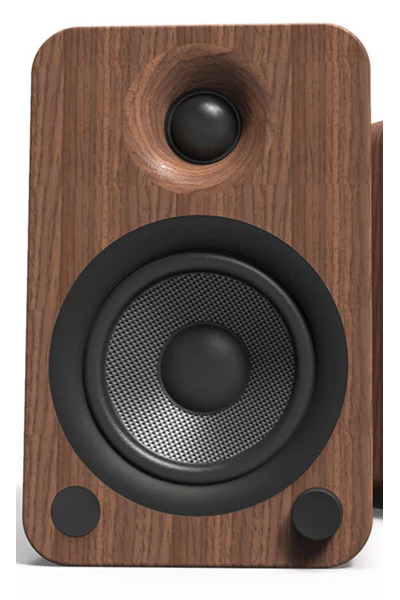

Kanto YU4 is a passive bookshelves that cost around 420 USD for a pair.
Vendor specifications
- Size
- Width 140mm
- Height 220mm
- Depth 190mm
- Weight 2.5kg
Directivity (-6dB)
| AutomaticEQ (IIR) | |||
| Set preamp gain to: -2.4dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 69.0 | 1.19 | 2.95 |
| PK | 121.0 | 1.6 | -3.77 |
| PK | 149.0 | 1.71 | -0.23 |
| PK | 235.0 | 2.79 | 0.42 |
| PK | 424.0 | 0.55 | 2.66 |
| PK | 1202.0 | 2.04 | -5.21 |
| PK | 1642.0 | 3.0 | 2.99 |
| Download | |||
