What we know about the measurement:

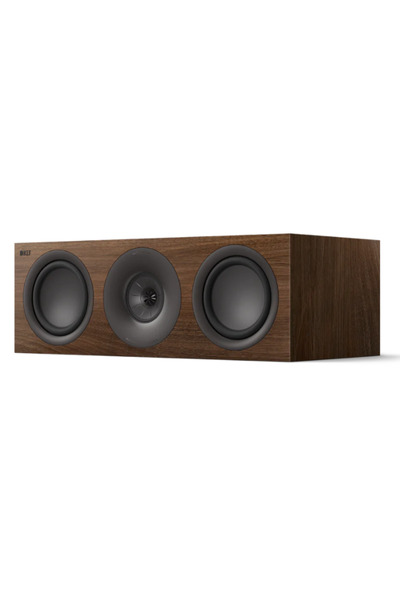

KEF Q6 Meta is a passive center that cost around 750 USD

  • Quality of the measurement data is medium.
  • Origin of the data is KEF.
  • Format of the data is .
  • -3dB (resp. -6db) point v.s. reference is at 60.7Hz (resp. 51.1Hz).
  • Reference level is normalised to 0.8dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.1dB over the same frequency range.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 5.97 and would be 8.2 with a perfect subwoofer.
      • Details: NBD: ON 0.334, LW 0.268, SP 0.294, PIR 0.281; SM: SP0.967, PIR0.945; LFQ 1.2, LFX 47Hz
    • Tonality (Preference) Score is 6.84 with an EQ and would be 8.61 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.286, LW 0.218, SP 0.186, PIR 0.172; SM: SP0.964, PIR0.93; LFQ 1.2, LFX 37Hz
  • Note: the off-axis average curves are truncated at 200Hz as this is close to the LF cut-off limit of our anechoic chamber. The on-axis LF response has been compensated using ground plane measurements carried out in free-field and is therefore valid only for that singular curve..
  • Vendor specifications:
    • Sensitivity 86 dB
    • Impedance 4 Ohm
    • SPL
      • peak: 109 dB
    • Size
      • Width 629mm
      • Height 210mm
      • Depth 303mm
    • Weight 14.1kg
KEF Q6 Meta
AutomaticEQ (IIR)
Set preamp gain to: -2.7dB.
Type Freq Q Gain
PK 40.0 0.86 2.97
PK 105.0 1.56 -2.66
PK 321.0 2.99 1.75
PK 424.0 0.84 -3.99
PK 504.0 2.46 2.99
PK 1010.0 2.52 2.16
PK 1244.0 2.05 -2.07
Download
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
Improvement made by adding the above EQ
EQ
AutoEQ
Target v.s. EQ
Target v.s. EQ
Histogram of errors
On Axis (fullrange)
Listening Window (fullrange)
Predicted In-Room Response (fullrange)
;
