- Quality of the measurement data is medium.
- Origin of the data is KEF.
- Format of the data is .
-
Sensitivity:
- Company: 86 dB
- Measured: 83.8 dB (avg. 300Hz-3kHz for 2.83V measured at 1m).
- -3dB (resp. -6db) point v.s. reference is at 65.1Hz (resp. 47.6Hz).
- Reference level is normalised to 0.4dB computed over the frequency range [300.0Hz, 5000.0Hz].
- Frequency deviation is 2.3dB over the same frequency range.
- Tonality (Preference) Score
- Tonality (Preference) Score is 5.47
and would be 7.7 with a
perfect subwoofer.
- Details: NBD: ON 0.431, LW 0.371, SP 0.388, PIR 0.357; SM: SP0.966, PIR0.93; LFQ 0.455, LFX 47Hz
- Tonality (Preference) Score is 6.63
with an EQ and would be 8.72 with a
perfect subwoofer and the same EQ.
- Details: NBD: ON 0.255, LW 0.192, SP 0.253, PIR 0.193; SM: SP0.984, PIR0.974; LFQ 0.455, LFX 44Hz
- Tonality (Preference) Score is 5.47
and would be 7.7 with a
perfect subwoofer.
- Note: the off-axis average curves are truncated at 200Hz as this is close to the LF cut-off limit of our anechoic chamber. The on-axis LF response has been compensated using ground plane measurements carried out in free-field and is therefore valid only for that singular curve..

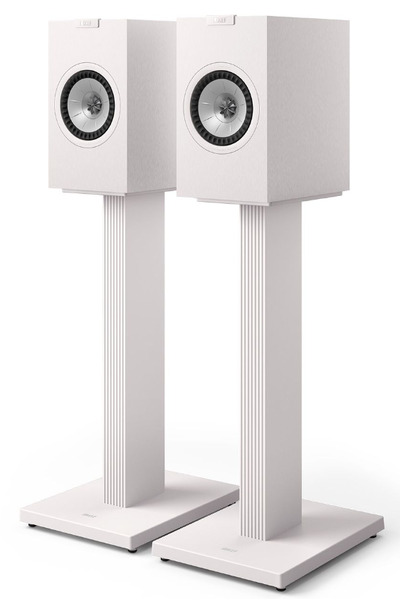

KEF Q1 Meta is a passive bookshelves that cost around 550 USD for a pair.
Vendor specifications
- Impedance 4 Ohm
- SPL
- peak: 108 dB
- Size
- Width 180mm
- Height 302mm
- Depth 277mm
- Weight 6.1kg
Directivity (-6dB)
| AutomaticEQ (IIR) | |||
| Set preamp gain to: -2.6dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 23.0 | 0.48 | 1.83 |
| PK | 72.0 | 0.76 | 2.15 |
| PK | 134.0 | 1.61 | -2.07 |
| PK | 235.0 | 1.53 | -1.54 |
| PK | 820.0 | 2.72 | -3.54 |
| PK | 1010.0 | 2.82 | 2.89 |
| PK | 1244.0 | 2.98 | -1.25 |
| Download | |||
