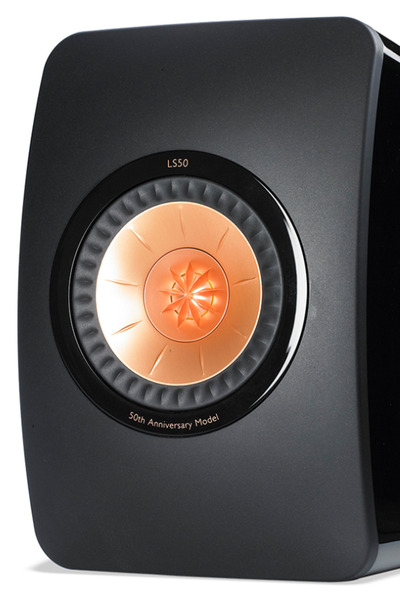

What we know about the measurement:
- Quality of the measurement data is
high.
-
Origin of the data is ASR.
-
Format of the data is
generated by a Klippel NFS
.
-
Sensitivity: 83.9dB (avg. 100Hz-1kHz for 2.83V estimated at 1m)
-
-3dB (resp. -6db) point v.s. reference is at 82.8Hz (resp. 49.1Hz).
-
Reference level is normalised to 0.6dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 3.9dB over the same frequency range.
- Directivity
-
Horizontal directivity
is (-50.0°, 50.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
-
Vertical directivity
is (-50.0°, 50.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Tonality (Preference) Score is 4.47
and would be 6.69 with a
perfect subwoofer.
- Details:
NBD: ON 0.6,
LW 0.526, SP
0.428, PIR
0.437; SM:
SP0.953,
PIR0.783; LFQ
0.546, LFX 47Hz
- Tonality (Preference) Score is 6.11
with an EQ and would be 8.18 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.372,
LW 0.312, SP
0.307, PIR
0.259; SM:
SP0.967,
PIR0.95; LFQ 0.546, LFX 43Hz
- Vertical measurement
- Link to Original review.
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -2.3dB.
|
| Type |
Freq |
Q |
Gain |
| 5 |
102.0 |
0.48 |
2.96 |
| 3 |
404.0 |
1.17 |
0.88 |
| 3 |
584.0 |
2.47 |
2.23 |
| 3 |
817.0 |
2.02 |
-1.24 |
| 3 |
1541.0 |
2.55 |
2.96 |
| 3 |
2813.0 |
1.97 |
-0.55 |
| 3 |
4803.0 |
2.78 |
-2.85 |
| 3 |
7669.0 |
0.72 |
1.54 |
| 5 |
14965.0 |
0.76 |
-0.64 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
flipflop@ASR (IIR)
|
|
Set preamp gain to: -1.2dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
466.0 |
4.209 |
-0.6 |
| 3 |
527.0 |
1.889 |
2.2 |
| 3 |
857.0 |
1.0 |
-2.7 |
| 3 |
1224.0 |
5.0 |
-2.0 |
| 3 |
1459.0 |
1.123 |
4.6 |
| 3 |
1639.0 |
4.703 |
-11.5 |
| 3 |
1645.0 |
4.807 |
11.7 |
| 3 |
2285.0 |
1.0 |
-3.1 |
| 3 |
2400.0 |
18.0 |
-0.6 |
| 3 |
4429.0 |
1.0 |
-1.4 |
| 3 |
4873.0 |
5.0 |
-2.3 |
| 3 |
6985.0 |
4.998 |
-2.1 |
| 3 |
8917.0 |
5.0 |
-3.4 |
| 3 |
10636.0 |
5.0 |
-3.1 |
| 3 |
11460.0 |
5.0 |
-2.2 |
| 3 |
12192.0 |
1.001 |
12.0 |
| 3 |
13179.0 |
1.386 |
-12.3 |
| 3 |
14084.0 |
5.0 |
1.2 |
| 3 |
16192.0 |
5.0 |
-1.5 |
| 3 |
17760.0 |
5.0 |
-1.6 |
|
Download
|
These EQ is designed by ASR member flipflop.
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -0.7dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
25.0 |
2.14 |
0.5 |
| 3 |
40.0 |
2.14 |
0.5 |
| 3 |
63.0 |
2.14 |
0.5 |
| 3 |
100.0 |
2.14 |
0.25 |
| 3 |
160.0 |
2.14 |
-0.25 |
| 3 |
250.0 |
2.14 |
-0.25 |
| 3 |
400.0 |
2.14 |
0.0 |
| 3 |
630.0 |
2.14 |
0.0 |
| 3 |
1000.0 |
2.14 |
-0.25 |
| 3 |
1600.0 |
2.14 |
0.25 |
| 3 |
2500.0 |
2.14 |
-0.5 |
| 3 |
4000.0 |
2.14 |
-0.5 |
| 3 |
6300.0 |
2.14 |
-0.25 |
| 3 |
10000.0 |
2.14 |
0.0 |
| 3 |
16000.0 |
2.14 |
0.0 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -0.8dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
20.0 |
4.32 |
0.0 |
| 3 |
25.0 |
4.32 |
0.5 |
| 3 |
31.0 |
4.32 |
0.5 |
| 3 |
40.0 |
4.32 |
0.5 |
| 3 |
50.0 |
4.32 |
0.5 |
| 3 |
63.0 |
4.32 |
0.5 |
| 3 |
80.0 |
4.32 |
0.5 |
| 3 |
100.0 |
4.32 |
0.25 |
| 3 |
125.0 |
4.32 |
0.0 |
| 3 |
160.0 |
4.32 |
-0.25 |
| 3 |
200.0 |
4.32 |
-0.25 |
| 3 |
250.0 |
4.32 |
0.0 |
| 3 |
315.0 |
4.32 |
0.0 |
| 3 |
400.0 |
4.32 |
0.0 |
| 3 |
500.0 |
4.32 |
0.25 |
| 3 |
630.0 |
4.32 |
0.0 |
| 3 |
800.0 |
4.32 |
-0.25 |
| 3 |
1000.0 |
4.32 |
0.0 |
| 3 |
1250.0 |
4.32 |
0.0 |
| 3 |
1600.0 |
4.32 |
0.5 |
| 3 |
2000.0 |
4.32 |
0.0 |
| 3 |
2500.0 |
4.32 |
-0.25 |
| 3 |
3150.0 |
4.32 |
-0.5 |
| 3 |
4000.0 |
4.32 |
-0.5 |
| 3 |
5000.0 |
4.32 |
-0.5 |
| 3 |
6300.0 |
4.32 |
0.0 |
| 3 |
8000.0 |
4.32 |
0.25 |
| 3 |
10000.0 |
4.32 |
0.25 |
| 3 |
12000.0 |
4.32 |
0.25 |
| 3 |
16000.0 |
4.32 |
0.0 |
| 3 |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
